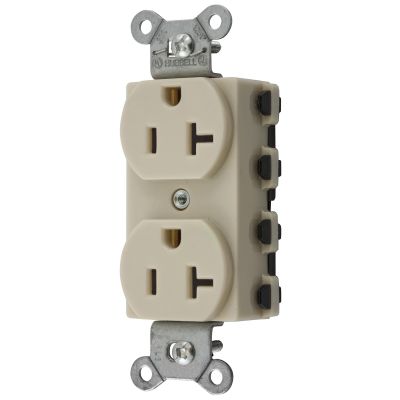

Hubbell Wiring SNAP5362INA

Wiring Device-Kellems SNAPConnect SNAP5362INA 1-Phase Duplex Extra Heavy Duty Grounding Standard Traditional Screw Mount Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Receptacles
7585121 SNAP5362INA
Hubbell Wiring
$0.00 / ea

Hubbell Wiring SNAP5362INA
  • Amperage Rating: 20
  • Color: Ivory
  • Dimensions: 3.28 x 1.64 x 1.1
  • Grade: Specification
  • Horsepower: 1
  • Material: Nylon
  • Nema Rating: 5-20R
  • Number of Poles: 2
  • Number Of Wires: 3
  • Temperature Rating: -40 to 75
  • terminal type: Connectorized
  • Type: 1-Phase Duplex Extra Heavy Duty Grounding Standard Traditional Screw Mount
  • Voltage Rating: 125
Wiring Device-Kellems SNAPConnect Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Grounding Standard Traditional Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Specification Grade, -40 to 75 deg C, Connectorized Terminal, Nylon, Ivory, 3.28 x 1.64 x 1.1 in
QTY
Add to Wishlist
  • Features
  • Modular wiring system eliminates screw terminal
  • Speeds installation and trim OUT
  • Clear polycarbonate terminal housing to inspect contacts
  • Abuse resistant nylon for extra heavy use applications
  • Stainless steel AUTO ground clip
  • Audible SNAP, indicates solid connection
  • Fully insulated design
  • Reduces installation time
  • Screw mounted
