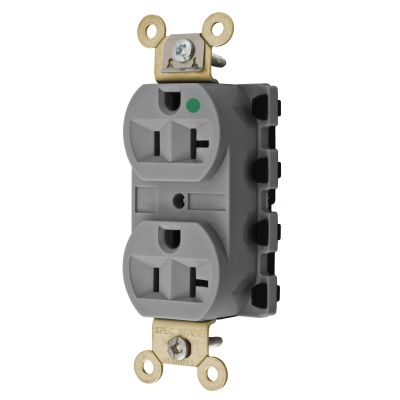

Hubbell Wiring SNAP8300GYA

Wiring Device-Kellems SNAPConnect SNAP8300GYA 1-Phase Duplex Grounding Standard Traditional Screw Mount Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
Receptacles
7210185 SNAP8300GYA
Hubbell Wiring
$0.00 / ea

Hubbell Wiring SNAP8300GYA
  • Amperage Rating: 20
  • Color: Gray
  • Dimensions: 3.28 x 1.64 x 1.1
  • Enclosure: IP20
  • Grade: Hospital
  • Horsepower: 1
  • Material: Nylon
  • Nema Rating: 5-20R
  • Number of Poles: 2
  • Number Of Wires: 3
  • Temperature Rating: -40 to 75
  • terminal type: Connectorized
  • Type: 1-Phase Duplex Grounding Standard Traditional Screw Mount
  • Voltage Rating: 125
Straight Blade Devices, Receptacles, Duplex, SNAPConnect, Hospital Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Nylon, Gray
QTY
Add to Wishlist
  • Features
  • Abuse resistant nylon for extra heavy use applications
  • Stainless steel AUTO ground
  • SNAPConnect® eliminates exposed live terminals on the device
  • Extra heavy duty receptacle
  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Fully insulated design
  • Nylon top, RTP base, brass bypass power contacts, wire clamps, mounting strap, lime terminal screws, ground screw and center assembly rivet, stainless steel automatic self-grounding clip, steel zinc plated flat head mounting screws, steel nickel finish ground tension clips
  • Receptacle certified for current interrupting at full rated current
  • Withstands 2000 VAC minimum dielectric voltage
  • 5 deg C maximum continuous and -40 deg C (without impact) operating temperature rating
  • Screw mounted
