Legrand 5671I

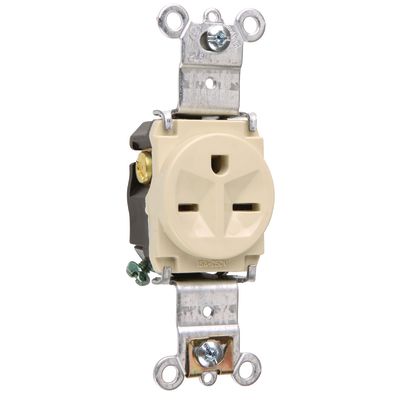

Pass & Seymour 5671I Heavy Duty Single Straight Blade Receptacle, 250 VAC, 15 A, 2 Poles, 3 Wires, Ivory
Receptacles
31084
5671I
Legrand
$0.00
/ ea
- Amperage Rating: 15
- Color: Ivory
- Dimensions: 1.32 in L x 1.093 in W x 3.68 in H
- Grade: Commercial/Specification
- Material: Nylon
- Nema Rating: NEMA 6-15R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 60
- terminal type: Back/Side Wire
- Type: Heavy Duty Single
- Voltage Rating: 250
Heavy-Duty Spec Grade Single Receptacle Back and, Side Wire 15amp 250volt Ivory
- Features
- Corrosion-resistant plated and tabbed steel strap locked in to the face and back body to resist pulling away from face/body assembly
- Auto-ground clip assures positive ground
- Easily accessed break-off line contact connecting tab for fast and easy split circuit wiring
- Impact-resistant nylon face and thermoplastic back body
- Internal screw pressure plate back wire capable of accepting 14 to 10 AWG solid or stranded copper or copper clad wire
- Terminal compartments isolated from each other for positive conductor containment
- Tri-drive terminal and mounting screws
- 1-piece brass, triple wipe power contacts for lasting retention
- Withstands 2000 VAC minimum dielectric voltage
- Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Wattage of electrical power is expressed in amperage and voltage
- Wall mounting
- 14 to 10 AWG wire
