nVent Hoffman Q1289ABD

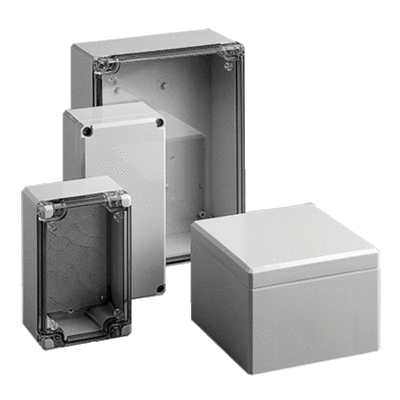

Hoffman QLINE™ Q1289ABD Junction Box, 120 mm H x 80 mm W x 85 mm D, Opaque/Screw Cover, NEMA 4X/IP67 NEMA Rating, ABS
Receptacles
6896499
Q1289ABD
nVent Hoffman
$0.00
/ ea
- Color: Light Gray
- Cover Type: Opaque/Screw
- Depth: 85
- Height: 120
- Material: ABS
- Mounting Type: Wall
- Nema Rating: NEMA 4X/IP67
- Panel Size: 3.58 x 2.56
- Series: Q41
- Width: 80
Hoffman QLINE Junction Box, Series: Q41, 120 mm Height, 80 mm Width, 85 mm Depth, NEMA 4X/IP67 NEMA Rating, Opaque/Screw Cover, 3.58 x 2.56 in Panel, Wall Mounting, ABS, Light Gray
- Features
- Body is impact-resistant polycarbonate for PCD series and ABS for ABD series
- Opaque and clear covers are impact-resistant polycarbonate for PCD series and ABS for ABD series
- Polycarbonate material is easily punched, drilled, filed or sawed
- Straight side walls permit ganging of multiple enclosures
- Cross point captivated cover screws are stainless steel
- Mounting holes molded directly adjacent to cover screws
- Cover screws protected by removable caps that are aesthetic and provide tamper resistance
- Molded internal pads for mounting optional panels, rails and other components
- Panel mounting feature on both body and cover
- Seamless foam in place gasket assures a watertight and dust tight seal
- Screws provided for mounting optional panel
- Material is halogen-free
