Woodhead 59W49

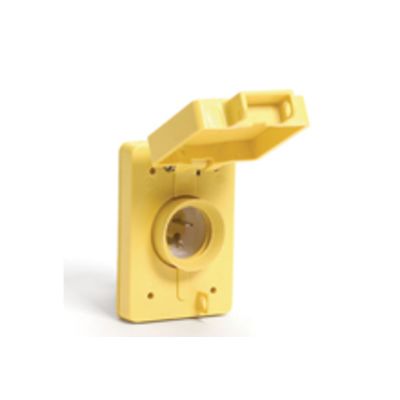

Woodhead® Male Receptacle, Series: 130146, 250 VAC, 15 A, 2 Pole, 3 Wires, NEMA 6-15 NEMA Rating, IP67 Enclosure, -40 to 75 deg C, Screw Terminal, Rubber, Yellow
Supporting Information
- Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure wash down up to 1000 psi|Color-coded 1/4 in terminal screws preset in open position, ready to wire|Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers|Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation|Transparent wiring guide to verify all wire strands are in place before securing wire|Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life|Three piece strain relief seals cord without damaging the cord|F2 body, 1/2 in cord grip|Nickel plated brass plug blades and connector contacts|NEo-TEX paracril OZO rubber outer housing and grommet|Stainless steel face screws|Nylon face insert|Brass wire saddle clamp|Lexan receptacle cover plate and closure caps
- Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure wash down up to 1000 psi
- Color-coded 1/4 in terminal screws preset in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers
- Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain relief seals cord without damaging the cord
- F2 body, 1/2 in cord grip
- Nickel plated brass plug blades and connector contacts
- NEo-TEX® paracril OZO rubber outer housing and grommet
- Stainless steel face screws
- Nylon face insert
- Brass wire saddle clamp
- Lexan receptacle cover plate and closure caps
- Brand:Â WoodheadAmperage Rating:Â 15Color:Â YellowEnclosure:Â IP67Material:Â RubberNema Rating:Â NEMA 6-15Number of Poles:Â 2Number Of Wires:Â 3Series:Â 130146Temperature Rating:Â -40 to 75terminal type:Â Screw
