Woodhead ARC30FAE03

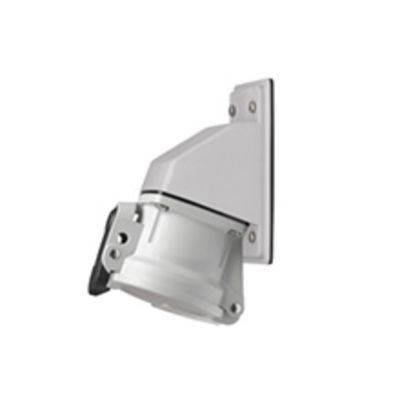

Woodhead ArcArrest ARC30FAE03 112219 Female Single Switch Rated Receptacle, Pin and Sleeve Connector, 12 to 8 AWG Wire, Glass Filled PBT Housing
Receptacles
7762711
ARC30FAE03
Woodhead
$0.00
/ ea
- Connector Type: Pin and Sleeve
- Contact Material: Copper/Silver Alloy
- Dimensions: 4.63 in H x 3.12 in W
- Housing Material: Glass Filled PBT
- Series: 112219
- Specifications: 30 A, 10 hp, 3-Pole+Ground Pin Configuration, 4-Wire, NEMA 4X/IP69K
- Temperature Rating: -25 to 60
- terminal type: Screw
- Type: Female Single
- Voltage Rating: 480
- Wire size: 12 to 8
Woodhead ArcArrest Switch Rated Receptacle, Female Single, Series: 112219, Pin and Sleeve Connector, 12 to 8 AWG Wire, 480 VAC, Copper/Silver Alloy Contact, Glass Filled PBT Housing Material, Screw Terminal, -25 to 60 deg C, Specifications: 30 A, 10 hp, 3-Pole+Ground Pin Configuration, 4-Wire, NEMA 4X/IP69K, 4.63 in H x 3.12 in W Dimensions
