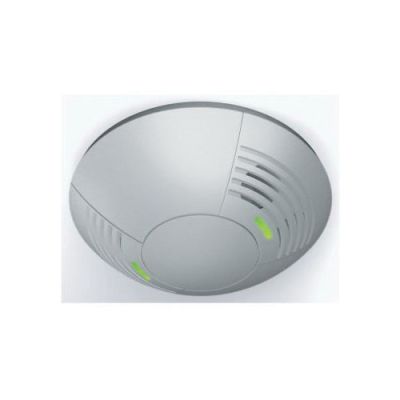

Lutron LOS-CUS-500-WH
Lutron LOS-CUS-500-WH Occupancy Sensor, 20 to 24 VDC, Passive/Ultrasonic Infrared Sensor, 500 sq-ft Coverage, 180 deg Viewing, Ceiling Mount
Connected Lighting and Controls
7329702
LOS-CUS-500-WH
Lutron
$0.00
/ ea
- Amperage Rating: 33
- Color: White
- Connection Type: 6 in Wire Lead
- Control Output: 20 to 24
- Coverage: 500
- Dimensions: 4.5 in Dia x 1.4 in D
- Material: Plastic
- Mounting Type: Ceiling
- Sensor Type: Passive/Ultrasonic Infrared
- Series: LOS-CUS
- Temperature Rating: 32 to 104
- Time Delay: 8 to 30 min Manual, 8 sec Test
- Viewing Angle: 180
- Voltage Rating: 20 to 24
Lutron LOS Series CLNG-mount Occupancy Sensor, Ultrasonic self-adaptive, 20-24VDC, 500 FT coverage, 180 degree field of view in white
- Features
- Intelligent, continually adapting ultrasonic sensor provides reliable detection with high minor motion detection
- The intelligent, continually adapting sensor technology eliminates manual sensitivity and timer adjustments during installation and over the life of the product
- The internal microprocessor analyzes the information from the ultrasonic technology and determines the optimum setting to use in order to properly cover the space
- Snap locks to ceiling mounted cover plate
- Excellent minor motion sensitivity
- Non-volatile memory, settings saved in protected memory are not lost during power outages
- 500 to 2000 sq-ft coverage when mounted on an 8 to 12 ft ceiling
- Affords choice of turning lights Off or dimming to a preset level in the unoccupied state when integrated with a Lutron® system
- Injection molded plastic
