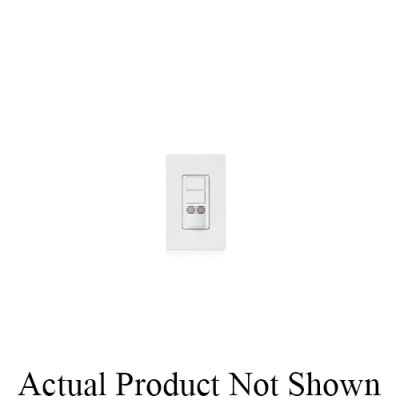

Lutron MS-B202-IV

Maestro MS-B202-IV Dual-Circuit Dual Technology Sensor Switch, 120 to 277 VAC, Occupancy Sensor, 400 to 900 sq-ft Coverage, 180 deg Viewing, Wall Box Mount
Connected Lighting and Controls
7329695 MS-B202-IV
Lutron
$0.00 / ea

Lutron MS-B202-IV
  • Amperage Rating: 6 A Lighting/4.4 A Fan
  • Color: Ivory
  • Coverage: 400 to 900
  • Dimensions: 4-11/16 in H x 2-15/16 in W x 5/16 in D
  • Lamp Type: CFL/Fluorescent/Halogen/Incandescent/LED
  • Mounting Type: Wall Box
  • Response Frequency: 50/60
  • Sensor Type: Occupancy
  • Temperature Rating: 32 to 104
  • Time Delay: 1/5/15/30
  • Type: Dual-Circuit
  • Viewing Angle: 180
  • Voltage Rating: 120 to 277
Maestro Dual Technology (Dual Tech), partial-on occupancy sensor switch, applies exclusive XCT Technology for minor and fine motion detection. Meets Title 24 requirements for multi-level lighting in ivory
QTY
Add to Wishlist
  • Features
  • The dual-circuit versions can be used to meet many of the title 20/24, ASHRAE 90.1 and IECC code requirements such as inautomatic shutoff in and inmulti-level lighting control in
  • XCT™ technology for major, minor, fine, and very fine motion detection
  • Tamper-resistant PIR lens
  • Up to 900 sq-ft major and 400 sq-ft minor motion coverage
  • Occupancy models can be set to Auto-ON/Auto-OFF or Manual-ON/Auto-OFF per circuit
  • 6 A of lighting load per circuit at 120 to 277 VAC, 4.4 A (1/6 HP) of fan load per circuit at 120 VAC
  • Sensitivity adjustment: PIR (Hi, Med, Low, Min), Ultrasonic (Hi, Med, Low, Off)
  • Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent
  • Smart Ambient Light Detection (ALD) and Fixed Ambient Light Detection
  • Adaptive zero-cross switching algorithm for extended relay life
  • Product ground current does not exceed 0.5 mA
  • 0 to 90% humidity, non-condensing, indoor use only
  • Single pole, 3-way
