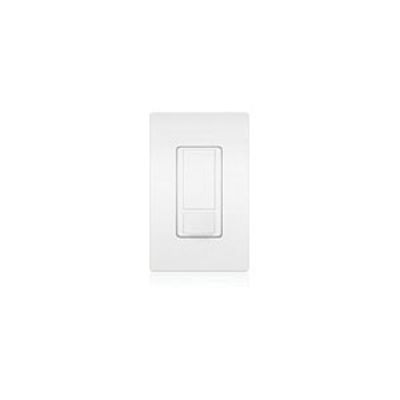

Lutron MSOPS5MWH
Maestro Passive Infrared Sensor Switch, Single-Circuit, 120 to 277 VAC, 5 A Lighting/3 A Fan, Occupancy Sensor, 400 to 900 sq-ft Coverage, 180 deg Viewing, 1/5/15/30 min Time Delay, CFL/Fluorescent/Halogen/Incandescent/LED Lamp, 50/60 Hz Response, Ground Connection, Wall Box Mounting, 32 to 104 deg F, White, 4-11/16 in H x 2-15/16 in W x 5/16 in D Dimensions
Supporting Information
- Automatically turns the lights on when you enter the room and off when you leave|Features XCT sensing technology which detects fine motion, such as typing at a desk or reading, ensuring lights do not turn off inadvertently|Optional - senses daylight so lights do not turn on when there is enough natural light in the room|Programmable time-out of lights - 1, 5, 15 or 30 min|Works with all bulb types, up to 600W incandescent, halogen and electronic low-voltage, 450W magnetic low-voltage, 360W CFL/LED, 5 ballasts, 3A fans
- Passive infrared sensors with exclusive Lutron® XCTTM Technology for fine motion detection
- Up to 900 sq-ft major and 400 sq-ft minor motion coverage
- Occupancy version can be set to auto-on/auto-off or manual-on/auto-off
- Adjustable timeout (1, 5, 15 or 30 min) and high/low sensitivity adjustment
- Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent and fan
- Smart ambient light detection
- Off-state power
- Crush/tamper resistant lens
- Adaptive switching algorithm for extended relay life
- XCT™ Technology for fine motion detection
- Lutron® patented Softswitch®
- 0 to 90% humidity non-condensing, indoor use only
- Single pole, multilocation/3-way
- Clamshell packaging
- Brand: LutronAmperage Rating: 5 A Lighting/3 A FanColor: WhiteConnection Type: GroundCoverage: 400 to 900Dimensions: 4-11/16 in H x 2-15/16 in W x 5/16 in DLamp Type: CFL/Fluorescent/Halogen/Incandescent/LEDMounting Type: Wall BoxResponse Frequency: 50/60Sensor Type: OccupancyTemperature Rating: 32 to 104
