Hubbell Wiring AD2000I1

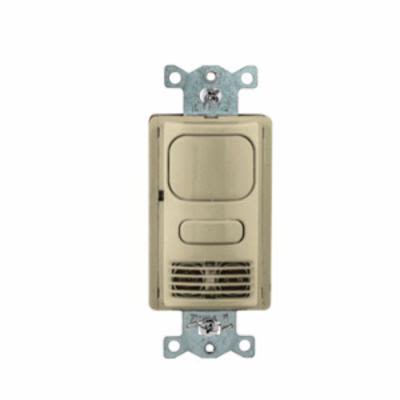

Hubbell H-MOSS AD2000I1 Wall Switch Sensor, 120/277 VAC, Passive Infrared/Ultrasonic Sensor, 1000 sq-ft Coverage, 180 deg Viewing, Wall Mount
Occupancy and Motion Sensors
7345503
AD2000I1
Hubbell Wiring
$0.00
/ ea
- Color: Ivory
- Connection Type: Wire Lead
- Control Output: Automatic/Manual On
- Coverage: 1000
- Dimensions: 4.13 in L x 1.71 in W x 1.69 in H
- Lamp Type: LED
- Material: High Impact Plastic
- Mounting Type: Wall
- Power Rating: 1000/1800
- Response Frequency: 50/60
- Sensor Type: Passive Infrared/Ultrasonic
- Temperature Rating: 32 to 104
- Time Delay: 4 to 30 min Adaptive
- Viewing Angle: 180
- Voltage Rating: 120/277
Occupancy Sensing Products, Wall Switch,Occupancy or Vacancy, Dual Tech, 1 Relay, 1000 Square Feet, 800WIncandescent, 1000W Fluorescent @ 120V AC, 1800W Fluorescent @ 277V AC,120/277V AC, With Photocell, Ivory
- Features
- Dual technology sensing combines the individual advantages of passive infrared and ultrasonic detection
- No neutral required
- Built-in photocell with manual super saver mode for daylight harvesting
- Impact-resistant hard lens is standard and color matched to the switch
- Plated steel mounting strap
- Dual element pyrometer and 12-element cylindrical hard lens
- Passive infrared, red LED, ultrasonic, green LED sensing indicator
- 0 to 800 W incandescent, 0 to 1000 W 120 VAC ballast, 0 to 1800 W 277 VAC ballast load capacity
- #18 AWG stranded wire, 6 in long with 1/2 in stripped ends wire leads
- 0 to 95% non-condensing relative humidity
- Adjustable ambient light override, 10 to 500 fcd ambient light
- 0 to 100% adaptive sensitivity
