Signify 2EVG54L840-4-D-UNV-DIM

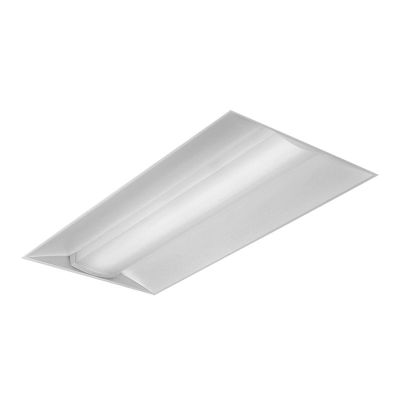

Signify Luminaires Day-Brite 2EVG54L840-4-D-UNV-DIM EvoGrid Static Standard Efficiency Recessed Lighting, LED Lamp, 54.8 W Fixture, Grid Ceiling Opening, 120 to 277 VAC
Industrial Fixtures (Fluorescent and LED)
7421751 2EVG54L840-4-D-UNV-DIM
Signify
$0.00 / ea

  • Average Life: 80000
  • Ballast Type: Electronic
  • Ceiling Opening: Grid
  • Color Rendering Index (CRI): 80
  • Color Temperature: 4000
  • Dimensions: 4 ft L x 2 ft W
  • Enclosure Type: NEMA G
  • Fixture Wattage: 54.8
  • Lamp Type: LED
  • Lens Type: Opal Glass
  • Light Color: Tunable White
  • Lumens: 5400
  • Mounting Type: Ceiling
  • Series: EvoGrid
  • Type: Static Standard Efficiency
  • Voltage Rating: 120 to 277
EvoGrid Recessed Architectural LED provides general lighting perfect for a wide variety of applications. Its soft opal diffuser, with large luminous area minimizes apparent brightness compared to other based luminaires.
  • Features
  • A highly efficient, visually comfortable, architecturally styled recessed LED luminaire designed with a minimalistic strategy to achieve sustainable objectives
  • Low profile configuration is only 2-3/4 in deep, requiring minimal plenum space
  • Soft opal diffuser with large luminous area minimizes apparent brightness and provides high visual comfort
  • Multiple lumen packages over a wide range to provide significant application flexibility over light levels and/or luminaire spacing
  • Directs a controlled amount of light to the higher angles in the room to balance the brightness of the surfaces and eliminate "cave effect" while creating the impression of a larger, brighter space without glare
  • LEDs are an excellent source for use with controls since dimming or frequent switching does not degrade the performance or life of the source, integral or external sensors are available for use
  • Continuous row mount option (CRM) includes wireway covers on each end and on one side of housing
  • Less material, less packaging required, reduced weight
  • Less energy required for construction and assembly
  • More luminaries can be shipped per truck to reduce fuel use and emissions
  • Luminaire finish is matte white polyester for a high quality, durable finish
  • T-bar grid clips are integral to body
  • Integral sensor options for occupancy sensing and/or daylight harvesting are available for additional energy-saving with no reduction of life or increase in installation labor
  • Total luminaire efficacy as high as 119 Lumens/W
  • LED board is easily accessible from below without tools, single LED board is replaceable if needed via plug-in connectors to ensure long service life
  • Opal diffuser provides soft, comfortable lighting while maintaining high efficiency
  • Optional space wise automated wireless technology provides integrated occupancy sensing and daylight harvesting for additional control and energy-saving
  • Requiring no system re-wiring, Space Wise technology is appropriate for retrofit or new design and is an ideal replacement system for typical office layouts
  • Daylight sensors are integral to each luminaire, eliminating the need for daylight zoning, daylight sensing is automatic and re-calibration occurs daily when luminaries turn on
  • SpaceWise remote control must be purchased separately, other peripherals include code compliant, wireless, battery less switches and external sensors
