Signify ER44RL1R

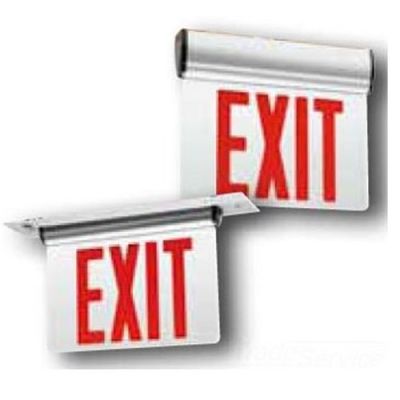

Philips Luminaires, Day-Brite exit sign surface mount, designed to be surface, recessed, or end mounted to the
Supporting Information
- Surface mount exits are durable extruded aluminum construction with easy to install canopy|Universal mount exits have extruded aluminum housing and trim plate|Adjustable bar hangers adapt housing for mounting in suspended ceiling|Surface mount exits are only available with satin aluminum finish|Universal mount exits are available in satin aluminum and white|If a surface mount exit with white finish is required, a universal mount exit with white finish must be ordered|Exit panel may be rotated 90 deg to simplify wall, ceiling or sloped ceiling applications and can be locked into place|Single face exits have a clear background and double face exits are provided with a mirror background|Signage contains 6 in letter height with 3/4 in stroke|The panel is clear acrylic|Chevrons may be applied in the field by simply placing chevron in the cutout area of template already attached to panel|Remove template after chevron is attached|Dual voltage 120/277 VAC input with surge protection, emergency models provide solid state charging system with low voltage disconnect, AC lockout and brownout features|The SD/ST circuitry performs an automatic test - 1 min every month, 30 min every 6th month of the year and a 90 min test on the 12th month of the year|A manual test can be activated at any time by simply pushing the test button|Emergency models utilize a self-contained, maintece free NiCad battery that will provide a minimum of 90 min of illumination, operating temperature range of 20 to 95 deg F|Red letter color|Universal Edge-lit
- Surface mount exits are durable extruded aluminum construction with easy to install canopy
- Universal mount exits have extruded aluminum housing and trim plate
- Adjustable bar hangers adapt housing for mounting in suspended ceiling
- Surface mount exits are only available with satin aluminum finish
- Universal mount exits are available in satin aluminum and white
- If a surface mount exit with white finish is required, a universal mount exit with white finish must be ordered
- Exit panel may be rotated 90 deg to simplify wall, ceiling or sloped ceiling applications and can be locked into place
- Single face exits have a clear background and double face exits are provided with a mirror background
- Signage contains 6 in letter height with 3/4 in stroke
- The panel is clear acrylic
- Chevrons may be applied in the field by simply placing chevron in the cutout area of template already attached to panel
- Remove template after chevron is attached
- Dual voltage 120/277 VAC input with surge protection, emergency models provide solid state charging system with low voltage disconnect, AC lockout and brownout features
- The SD/ST circuitry performs an automatic test - 1 min every month, 30 min every 6th month of the year and a 90 min test on the 12th month of the year
- A manual test can be activated at any time by simply pushing the test button
- Emergency models utilize a self-contained, maintenance free NiCad battery that will provide a minimum of 90 min of illumination, operating temperature range of 20 to 95 deg F
- Red letter color
- Universal Edge-lit
- Brand: SignifyFixture Wattage: 3/3.5
