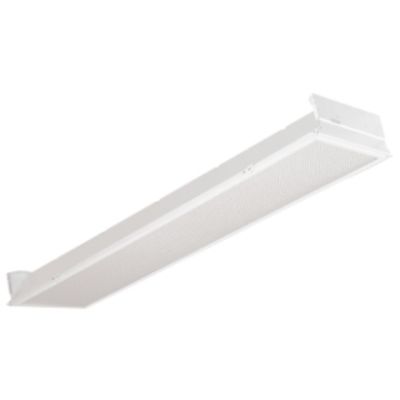

Signify 2TG8432-01-UNV-1/4-EB
Day-Brite, Length: 47 IN, Width: 47 IN, Height: 55.11 IN, WEIGHT: 21.16 LB
Supporting Information
- Smooth rolled edges on all four sides for easy handling|Die formed 1-piece housing includes stiffening embosses and provides increased rigidity|Housing is multi-stage phosphate treated for maximum corrosion-resistance and finish coat is high reflectance baked white enamel|Lamp pin openings in housing ends for easier re-lamping when using straight lamps (can be relamped without using openings)|Integral baffling system to prevent light leaks|Integral wire hanger holes for independent wire suspension|Embosses with holes provided in housing end for screwing to T-bar if desired|Factory installed access plate in housing top includes 7/8 in hole with rolled edge and 7/8 in KO|Some models utilizing multiple ballasts will be supplied with a top mounted ballast box, which will increase the height of the luminaire|T-bar grid clips built into luminaire, no extra parts required|Carton includes integral carrying handle for easy handling and tear tape for easy opening|Self-contained fluorescent emergency power packs can be incorporated, listed for dry locations|Full "C" channel door frames for improved lens support and reduced shipping damage|Flat steel door frame features smooth rolled edges inside and outside
- Smooth rolled edges on all four sides for easy handling
- Die-formed one piece housing includes stiffening embosses and provides increased rigidity
- Housing is multi-stage phosphate treated for maximum corrosion resistance and finish coat is high reflectance baked white enamel
- Lamp pin openings in housing ends for easier relamping when using straight lamps (can be relamped without using openings)
- Integral baffling system to prevent light leaks
- Integral wire hanger holes for independent wire suspension
- Embosses with holes provided in housing end for screwing to T-Bar if desired
- Factory installed access plate in housing top includes 7/8 in hole with rolled edge and 7/8 in K.O
- Some models utilizing multiple ballasts will be supplied with a top mounted ballast box, which will increase the height of the luminaire
- T-Bar grid clips built into luminaire, no extra parts required
- Carton includes integral carrying handle for easy handling and tear tape for easy opening
- Self-contained fluorescent emergency power packs can be incorporated, listed for dry locations
- Full "C" channel door frames for improved lens support and reduced shipping damage
- Flat steel door frame features smooth rolled edges inside and outside
- Door frame uses T-hinges and can be hinged and latched from either side
- Opposable stainless steel spring loaded latches are standard for easy operation and consistent retention
- Door frame has true mitered corners
- Low profile housing
- Designed for use with standard grid ceiling members, 1-1/2 in maximum height
- White door finish
- Brand: SignifyAverage Life: 3000Ballast Type: ElectronicColor Rendering Index (CRI): 70Color Temperature: 3500Dimensions: 3-3/16 in L x 24 in WEnclosure Type: NEMA GFixture Wattage: 78Housing Material: PhosphateLamp Type: T8Lamp Wattage: 32
