RAB Lighting BAYLED78W

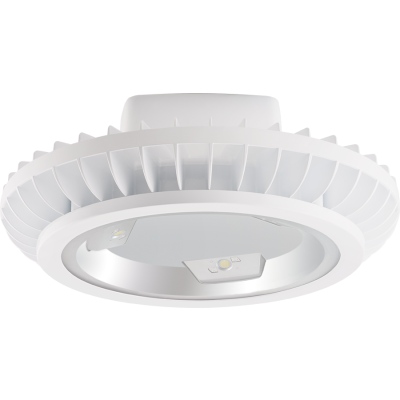

RAB BAYLED78W High Bay Fixture With Hook and Cord,) LED Lamp, 89 W Fixture, 120/208/240/277 VAC, White Housing
Wallpacks (HID and LED)
7219526
BAYLED78W
RAB Lighting
$0.00
/ ea
- Amperage Rating: 0.4/0.45/0.52/0.82
- Average Life: 100000
- Ballast Type: Class 2/Constant Current
- Color Rendering Index (CRI): 68
- Color Temperature: 5100
- Dimensions: 9-3/8 in H x 18 in W
- Fixture Wattage: 89
- Housing Finish: White
- Housing Material: Die Cast Aluminum
- Lamp Type: LED
- Lamp Wattage: 78
- Lens Type: Tempered Glass
- Light Color: Cool White
- Lighting Technology: Multi-Chip
- Lumens: 7612
- Mounting Type: Ceiling
- Series: BAYLED
- Voltage Rating: 120/208/240/277
High Bays 11311 Lumens Bayled 78W White
- Features
- Replaces 250 W metal halide high bays
- Reduces energy consumption up to 67%
- 3 multi-chip, 26 W high output, long life LEDs
- 100000 hr LED lifespan based on IES LM-80 results and TM-21 calculations lifespan
- 7-step MacAdam ellipse binning to achieve consistent fixture to fixture color
- LED color temperature is warranted to shift no more than 200 K in CCT over a 5 years period
- Suitable for use in 55 deg C ambient temperature
- Superior thermal management with external airflow fins
- Precision die cast aluminum housing and door frame with 3 ft 600 VAC power cord
- Heavy duty 3/4 in NPS hook and 3 ft safety chain
- Specular vacuum metalized polycarbonate
- High temperature silicone gaskets
- Our environmentally friendly polyester powder coatings are formulated for high durability and long-lasting color and contains no VOC or toxic heavy metals
- Mercury and UV-free, polyester powder coat finish formulated without the use of VOC or toxic heavy metals
- 0.82 A at 120 VAC, 0.52 A at 208 VAC, 0.45 A at 240 VAC and 0.4 A at 277 VAC amperage ratings
