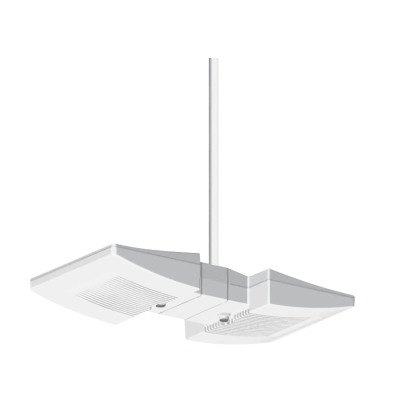

RAB Lighting PLED2X26W/UP

RAB PLED2X26W/UP Uplight Canopy Lighting, (2) LED Lamp, 59 W Fixture, 100 to 240/277 VAC, White/Polyester Powder Coated Housing
Wallpacks (HID and LED)
7586244 PLED2X26W/UP
RAB Lighting
$0.00 / ea

  • Amperage Rating: 0.48/0.30/0.26/0.22
  • Average Life: 100000
  • Ballast Type: Class 2/Constant Current
  • Mounting Type: Pendant
  • Color Rendering Index (CRI): 67
  • Color Temperature: 5100
  • Dimensions: 1 ft 7-1/4 in L x 9-1/2 in D
  • Fixture Wattage: 59
  • Housing Finish: White/Polyester Powder Coated
  • Housing Material: Die Cast Aluminum
  • Lamp Type: LED
  • Lamp Wattage: 26
  • Light Color: Cool White
  • Lumens: 3632
  • Number of Lamps: 2
  • Type: Uplight
  • Voltage Rating: 100 to 240/277
RAB Canopy Lighting, Uplight, 100 to 240/277 VAC, 59 W Fixture, 0.48/0.30/0.26/0.22 A, LED Lamp, 26 W Lamp, 2 Lamps, 100000 hr Average Life, Cool White Light, 5100 K Color Temperature, 67 CRI, Class 2/Constant Current Ballast, 3632 Lumens, Pendant Mounting, Die Cast Aluminum Housing Material, White/Polyester Powder Coated Housing Finish, 1 ft 7-1/4 in L x 9-1/2 in D Dimensions
  • Features
  • Die cast aluminum lens frame with tempered glass and double gasketing
  • Fully shielded and full cut-off optics
  • LED light engine life delivers 70% of rated lumens at 100000 hr
  • 0.48 A at 120 VAC, 0.30 A at 208 VAC, 0.26 A at 240 VAC and 0.22 A at 277 VAC amperage rating
