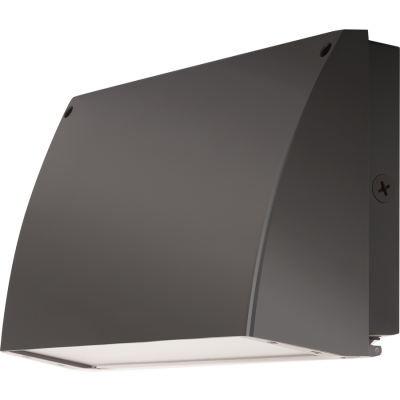

RAB Lighting SLIM57N
RAB Wallpack, Cutoff Standard, Series: SLIM, 120/208/240/277 VAC, 57 W Fixture, 0.48/0.32/0.28/0.24 A, LED Lamp, 57 W Lamp, 100000 hr Average Life, Neutral Light, 4000 K Color Temperature, 78 CRI, Class 2/Constant Current Ballast, Micro-Prismatic Diffusion Glass Lens, 3893 Lumens, IP66 Enclosure, Wall Mounting, Die Cast Aluminum Housing Material, Bronze Housing Finish, 9.3 in H x 14 in W x 5 in D Dimensions
Supporting Information
- Precision die cast aluminum housing and door frame|The unique design of the tight lock gasket ensures no water or environmental elements will ever get inside the Slim|Specular thermoplastic reflector|Recommended mounting height up to 25 ft|Superior thermal management with external air flow fins|Die cast back box with (4) conduit entry points and knockout pattern for junction box or direct wall mounting|Mercury and UV free|-40 to 40 deg C temperature|Covers footprint of most traditional wallpacks|Easy installation with hinged access, bubble level and multiple conduit entries|Tight lock gasket keeps elements out|69 LPW efficacy|Our environmentally friendly polyester powder coatings are formulated for high durability and long lasting color and contain no VOC or toxic heavy metals|Micro prismatic diffusion glass lens reduces glare and has smooth and even light distribution|0.48 A at 120 VAC, 0.32 A at 208 VAC, 0.28 A at 240 VAC, 0.24 A at 277 VAC|Without photocell
- Precision die cast aluminum housing and door frame
- The unique design of the tight lock gasket ensures no water or environmental elements will ever get inside the Slim
- Specular thermoplastic reflector
- Recommended mounting height up to 25 ft
- Superior thermal management with external air flow fins
- Die cast back box with (4) conduit entry points and knockout pattern for junction box or direct wall mounting
- Mercury and UV free
- -40 to 40 deg C temperature
- Covers footprint of most traditional wallpacks
- Easy installation with hinged access, bubble level and multiple conduit entries
- Tight lock gasket keeps elements out
- 69 LPW efficacy
- Our environmentally friendly polyester powder coatings are formulated for high durability and long lasting color and contain no VOC or toxic heavy metals
- Micro prismatic diffusion glass lens reduces glare and has smooth and even light distribution
- 0.48 A at 120 VAC, 0.32 A at 208 VAC, 0.28 A at 240 VAC, 0.24 A at 277 VAC
- Without photocell
- Brand: RAB LightingAmperage Rating: 0.48/0.32/0.28/0.24Average Life: 100000Ballast Type: Class 2/Constant CurrentColor Rendering Index (CRI): 78Color Temperature: 4000Dimensions: 9.3 in H x 14 in W x 5 in DEnclosure Type: IP66Fixture Wattage: 57Housing Finish: BronzeHousing Material: Die Cast Aluminum
