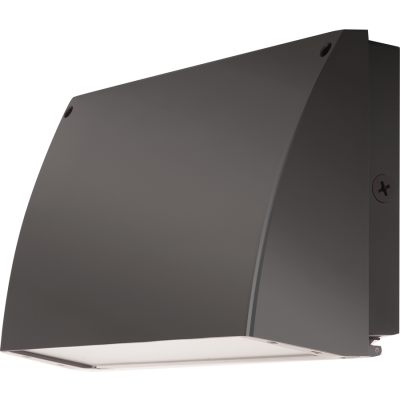

RAB Lighting SLIM57Y
RAB SLIM57Y Cutoff Standard Wallpack,) LED Lamp, 57 W Fixture, 120/208/240/277 VAC, Bronze Housing
Wallpacks (HID and LED)
7317163
SLIM57Y
RAB Lighting
$0.00
/ ea
- Amperage Rating: 0.48/0.32/0.28/0.24
- Average Life: 100000
- Ballast Type: Class 2/Constant Current
- Color Rendering Index (CRI): 80
- Color Temperature: 3000
- Dimensions: 9.3 in H x 14 in W x 5 in D
- Enclosure Type: IP66
- Fixture Wattage: 57
- Housing Finish: Bronze
- Housing Material: Die Cast Aluminum
- Lamp Type: LED
- Lamp Wattage: 57
- Lens Type: Micro-Prismatic Diffusion Glass
- Light Color: Warm White
- Lumens: 3739
- Mounting Type: Wall
- Series: Slim
- Type: Cutoff Standard
- Voltage Rating: 120/208/240/277
Wall Packs 4977 Lumens Slim 57W Bronze
- Features
- Precision die cast aluminum housing and door frame
- The unique design of the tight lock gasket ensures no water or environmental elements will ever get inside the Slim
- Specular thermoplastic reflector
- Recommended mounting height up to 25 ft
- Superior thermal management with external air flow fins
- Die cast back box with (4) conduit entry points and knockout pattern for junction box or direct wall mounting
- Mercury and UV free
- -40 to 40 deg C temperature
- Covers footprint of most traditional wallpacks
- Easy installation with hinged access, bubble level and multiple conduit entries
- Tight lock gasket keeps elements out
- 66 LPW efficacy
- Our environmentally friendly polyester powder coatings are formulated for high durability and long lasting color and contain no VOC or toxic heavy metals
- Micro prismatic diffusion glass lens reduces glare and has smooth and even light distribution
- 0.48 A at 120 VAC, 0.32 A at 208 VAC, 0.28 A at 240 VAC, 0.24 A at 277 VAC
- Without photocell
