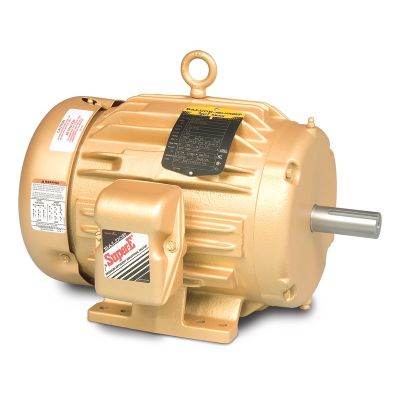

Baldor EM4103T
Baldor-Reliance Super-E EM4103T Type 1046M Continuous Duty AC Motor, TEFC/NEMA B Enclosure, 25 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 284T Frame, 1770 rpm Speed, F1/Foot Rigid Mount
AC Motors
283906
EM4103T
Baldor
$0.00
/ ea
- Amperage Rating: 64/60/30
- Application Type: General Purpose AC Motors, Compressor Motors, Fan and Blower Motors
- Bearing Type: Ball
- Dimensions: 27.76 in L x 20.5 in W x 17.16 in H
- Material: Iron
- Mounting Type: F1/Foot Rigid
- Number Of Speeds: 1
- Phase: 3
- Rotation: Reversible
- Service Factor: 1.15
- Shaft Size: 1-7/8
- Enclosure Type: TEFC/NEMA B
- Frame: 284T
- Frequency Rating: 60
- Horsepower: 25
- Insulation Class: Class F
- Speed: 1770
- Temperature Rating: 40 to 76
- Torque Rating: 74.2
- Type: Type 1046M Continuous Duty
- Voltage Rating: 208/230/460
Baldor-Reliance Super-E AC Motor, Type 1046M Continuous Duty, General Purpose AC Motors, Compressor Motors, Fan and Blower Motors Application, 25 hp, 208/230/460 VAC, 64/60/30 A, 60 Hz Frequency, 3 ph, 1770 rpm Speed, 1 Speed, TEFC/NEMA B Enclosure, 284T Frame, 1-7/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 74.2 ft-lb Torque, F1/Foot Rigid Mounting, 40 to 76 deg C, Insulation Class: Class F, Iron, 27.76 in L x 20.5 in W x 17.16 in H Dimensions
- Features
- 60 Hz designs with 50 Hz information on 2, 4, 6-pole 1 to 125 hp ratings
- Simple F1 to F2 conversion on cast iron frames
- Designed for longevity with ok 3 years warranty on premium efficient Super-E® motors
