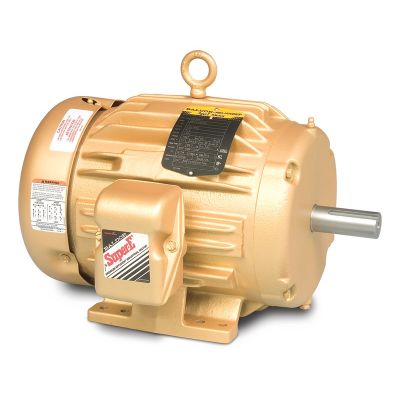

Baldor EM2332T
Baldor-Reliance EM2332T Type 0960M Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 10 hp, 208/230/460 VAC, 60 Hz, 3 Phase, 256T Frame, 1180 rpm Speed, Foot Rigid Mount
AC Motors
5405397
EM2332T
Baldor
$0.00
/ ea
- Amperage Rating: 30/28.2/14.1
- Application Type: General Purpose AC Motors, Fan & Blower Motors, Compressor Motors
- Bearing Type: Ball
- Dimensions: 23.28 in L x 16.67 in W x 15.6 in H
- Material: Iron
- Mounting Type: Foot Rigid
- Number Of Speeds: 1
- Phase: 3
- Rotation: Reversible
- Service Factor: 1.15
- Shaft Size: 1-5/8
- Enclosure Type: Totally Enclosed Fan Cooled
- Frame: 256T
- Frequency Rating: 60
- Horsepower: 10
- Insulation Class: Class F
- Speed: 1180
- Temperature Rating: 40 to 76
- Torque Rating: 44.3
- Type: Type 0960M Continuous Duty
- Voltage Rating: 208/230/460
Baldor-Reliance AC Motor, Type 0960M Continuous Duty, General Purpose AC Motors, Fan & Blower Motors, Compressor Motors Application, 10 hp, 208/230/460 VAC, 30/28.2/14.1 A, 60 Hz Frequency, 3 ph, 1180 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 256T Frame, 1-5/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 44.3 ft-lb Torque, Foot Rigid Mounting, 40 to 76 deg C, Insulation Class: Class F, Iron, 23.28 in L x 16.67 in W x 15.6 in H Dimensions
- Features
- 60 Hz designs with 50 Hz information on 2, 4, 6 pole 1 to 125 hp ratings
- Simple F1 to F2 conversion on cast iron frames
- Designed for longevity with ok 3 years warranty on premium efficient Super-E® motors
