Baldor FDL3504M

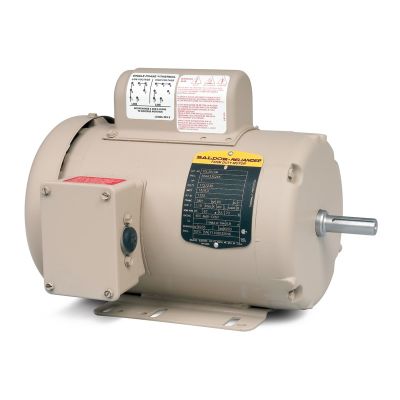

Baldor-Reliance FDL3504M Type 3421L Continuous Duty Premium Efficient AC Motor, Totally Enclosed Fan Cooled Enclosure, 1/2 hp, 115/208/230 VAC, 60 Hz, 1 Phase, 56 Frame, 1725 rpm Speed, Foot Rigid Mount
AC Motors
514207
FDL3504M
Baldor
$0.00
/ ea
- Amperage Rating: 7.4/4.3/3.7
- Application Type: General Purpose AC Motors
- Bearing Type: Sealed
- Dimensions: 11.97 in L x 7.9 in H
- Material: Steel
- Mounting Type: Foot Rigid
- Number Of Speeds: 1
- Phase: 1
- Rotation: Reversible
- Service Factor: 1.25
- Shaft Size: 5/8
- Enclosure Type: Totally Enclosed Fan Cooled
- Frame: 56
- Frequency Rating: 60
- Horsepower: 1/2
- Insulation Class: Class B
- Speed: 1725
- Temperature Rating: 40 to 176
- Torque Rating: 1.5
- Type: Type 3421L Continuous Duty Premium Efficient
- Voltage Rating: 115/208/230
Baldor-Reliance AC Motor, Type 3421L Continuous Duty Premium Efficient, General Purpose AC Motors Application, 1/2 hp, 115/208/230 VAC, 7.4/4.3/3.7 A, 60 Hz Frequency, 1 ph, 1725 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56 Frame, 5/8 in Shaft, Reversible Rotation, 1.25 Service Factor, Sealed Bearing, 1.5 ft-lb Torque, Foot Rigid Mounting, 40 to 176 deg C, Insulation Class: Class B, Steel, 11.97 in L x 7.9 in H Dimensions
- Features
- Lubed for life double sealed ball bearings
- Lip seal and V-ring slinger on DE for increased moisture resistance
- Gasketed manual reset thermal overload protection
