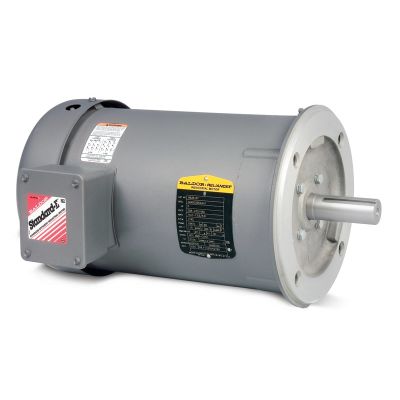

Baldor VM3538
Baldor-Reliance VM3538 Type 3416M Continuous Duty AC Motor, Application Type: General Purpose AC Motors, Compressor Motors, Fan and Blower Motors, TEFC/NEMA B Enclosure, 1/2 hp, 208/230/460 VAC, 60 Hz, 3 Phase, 56C Frame, 1725 rpm Speed
AC Motors
262514
VM3538
Baldor
$0.00
/ ea
- Amperage Rating: 2.5/2/1
- Application Type: General Purpose AC Motors, Compressor Motors, Fan and Blower Motors
- Bearing Type: Ball
- Dimensions: 11.35 in L x 9.27 in W
- Material: Steel
- Mounting Type: C-Face/Footless/F1
- Number Of Speeds: 1
- Phase: 3
- Rotation: Reversible
- Service Factor: 1.25
- Shaft Size: 5/8
- Enclosure Type: TEFC/NEMA B
- Frame: 56C
- Frequency Rating: 60
- Horsepower: 1/2
- Insulation Class: Class F
- Speed: 1725
- Temperature Rating: 40 to 76
- Torque Rating: 1.5
- Type: Type 3416M Continuous Duty
- Voltage Rating: 208/230/460
Baldor-Reliance AC Motor, Type 3416M Continuous Duty, General Purpose AC Motors, Compressor Motors, Fan and Blower Motors Application Type, 1/2 hp, 208/230/460 VAC, 2.5/2/1 A, 60 Hz, 3 Phase, 1725 rpm, 1 Speed, TEFC/NEMA B, 56C Frame, 5/8 in Shaft, Reversible, Service Factor: 1.25, Ball Bearing, 1.5 ft-lb, C-Face/Footless/F1 Mount, 40 to 76 deg C, Insulation Class: Class F, Steel, 11.35 in L x 9.27 in W
- Features
- Footless design reduces weight and improves safety
- Locked DE bearing to allow mounting in any configuration
- 60 Hz designs with 50 Hz information on 2, 4, 6-pole 1 to 125 hp ratings
- Suitable for inverter use per NEMA MG1 part 31.4.4.2
- Designed for longevity with ok 3 years warranty on premium efficient Super-E® motors
