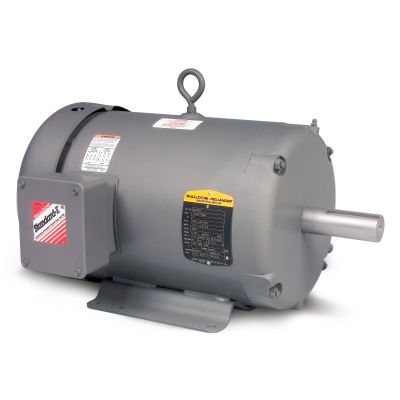

Baldor M3543T
Baldor-Reliance M3543T Type 3428M Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 3/4 hp, 208/230/460 VAC, 60 Hz, 3 Phase, 143T Frame, 1140 rpm Speed, Foot Rigid Mount
AC Motors
262445
M3543T
Baldor
$0.00
/ ea
- Amperage Rating: 3.3/3/1.5
- Application Type: General Purpose AC Motors, Fan & Blower Motors, Compressor Motors
- Bearing Type: Ball
- Dimensions: 13.41 in L x 9.27 in W
- Material: Steel
- Mounting Type: Foot Rigid
- Number Of Speeds: 1
- Phase: 3
- Rotation: Reversible
- Service Factor: 1.15
- Shaft Size: 7/8
- Enclosure Type: Totally Enclosed Fan Cooled
- Frame: 143T
- Frequency Rating: 60
- Horsepower: 3/4
- Insulation Class: Class B
- Speed: 1140
- Temperature Rating: 40 to 76
- Torque Rating: 3.4
- Type: Type 3428M Continuous Duty
- Voltage Rating: 208/230/460
Baldor-Reliance AC Motor, Type 3428M Continuous Duty, General Purpose AC Motors, Fan & Blower Motors, Compressor Motors Application, 3/4 hp, 208/230/460 VAC, 3.3/3/1.5 A, 60 Hz Frequency, 3 ph, 1140 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 143T Frame, 7/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 3.4 ft-lb Torque, Foot Rigid Mounting, 40 to 76 deg C, Insulation Class: Class B, Steel, 13.41 in L x 9.27 in W Dimensions
- Features
- Dual speed ratings
- High performance ball bearings
- Dynamically balanced rotors
- Heavy duty steel or cast iron frame
