Baldor L3712T

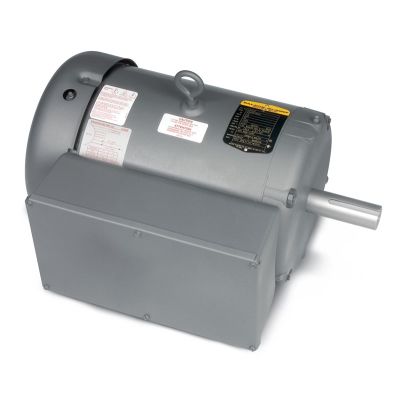

Baldor-Reliance L3712T Type 3748LC Continuous Duty AC Motor, TEFC/NEMA L Enclosure, 10 hp, 230 VAC, 60 Hz, 1 ph Phase, 215T Frame, 1740 rpm Speed, F1/Foot Rigid Mount
AC Motors
5407145
L3712T
Baldor
$0.00
/ ea
- Amperage Rating: 38
- Application Type: General Purpose AC Motors, Fan and Blower Motors
- Bearing Type: Ball
- Dimensions: 20.52 in L x 12.42 in H
- Material: Steel
- Mounting Type: F1/Foot Rigid
- Number Of Speeds: 1
- Phase: 1
- Rotation: Reversible
- Service Factor: 1
- Shaft Size: 1-3/8
- Enclosure Type: TEFC/NEMA L
- Frame: 215T
- Frequency Rating: 60
- Horsepower: 10
- Insulation Class: Class F
- Speed: 1740
- Temperature Rating: 40 to 76
- Torque Rating: 29.8
- Type: Type 3748LC Continuous Duty
- Voltage Rating: 230
Baldor-Reliance AC Motor, Type 3748LC Continuous Duty, General Purpose AC Motors, Fan and Blower Motors Application, 10 hp, 230 VAC, 38 A, 60 Hz Frequency, 1 ph, 1740 rpm Speed, 1 Speed, TEFC/NEMA L Enclosure, 215T Frame, 1-3/8 in Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 29.8 ft-lb Torque, F1/Foot Rigid Mounting, 40 to 76 deg C, Insulation Class: Class F, Steel, 20.52 in L x 12.42 in H Dimensions
- Features
- Low noise vibration dampening base
- Dynamically balanced rotor to increase bearing life
- Superior switch design provides optimized torque profiles
- Robust heavy gauge steel design
