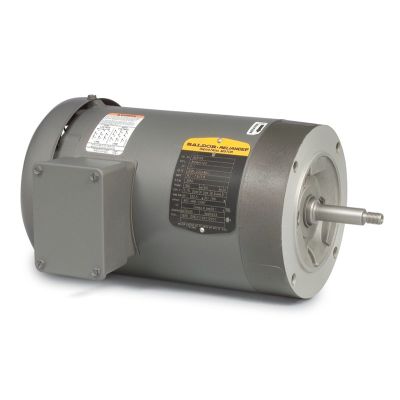

Baldor JM3460

Baldor-Reliance JM3460 Type 3413M Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 1/2 hp, 208/230/460 VAC, 60 Hz, 3 Phase, 56J Frame, 3450 rpm Speed, C-Face Footed Mount
AC Motors
262429 JM3460
Baldor
$0.00 / ea

Baldor JM3460
  • Amperage Rating: 3.1/2.4/1.2
  • Application Type: General Purpose AC Motors, Jet Pump (JM/JP) Motors, Sewage & Wastewater Pump Motors
  • Bearing Type: Ball
  • Dimensions: 11.84 in L x 9.28 in W
  • Material: Steel
  • Mounting Type: C-Face Footed
  • Number Of Speeds: 1
  • Phase: 3
  • Rotation: Reversible
  • Service Factor: 1.6
  • Shaft Size: 5/8
  • Enclosure Type: Totally Enclosed Fan Cooled
  • Frame: 56J
  • Frequency Rating: 60
  • Horsepower: 1/2
  • Insulation Class: Class B
  • Speed: 3450
  • Temperature Rating: 40 to 176
  • Type: Type 3413M Continuous Duty
  • Voltage Rating: 208/230/460
Baldor-Reliance AC Motor, Type 3413M Continuous Duty, General Purpose AC Motors, Jet Pump (JM/JP) Motors, Sewage & Wastewater Pump Motors Application, 1/2 hp, 208/230/460 VAC, 3.1/2.4/1.2 A, 60 Hz Frequency, 3 ph, 3450 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56J Frame, 5/8 in Shaft, Reversible Rotation, 1.6 Service Factor, Ball Bearing, C-Face Footed Mounting, 40 to 176 deg C, Insulation Class: Class B, Steel, 11.84 in L x 9.28 in W Dimensions
QTY
Add to Wishlist
  • Features
  • Corrosion resistant stainless steel shaft extension
  • Slotted opposite DE shaft for easy installation
  • Dynamically balanced rotor to reduce noise and increase bearing life
