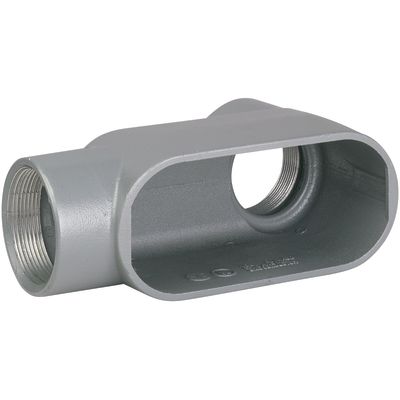

Hubbell Killark LB67
Killark Duraloy 7 Conduit Body, Type LB, 2 in Hub, 2 Hubs, 48 cu-in Capacity, 7 Form, NEMA 3 Enclosure, Thread Connection, Iron, Tri-Coated, Gray, 8-1/4 in L x 3-1/16 in W x 4-5/16 in H Dimensions
Supporting Information
- To provide access to conductors for pulling, splicing and maintenance|Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal|Tri-coat finish of electro zinc, chromate sealant and electrostatically applied powder coating|Suitable for wet locations when used with gaskets|Innovative spring clip design for installation ease and repeat usage|High-quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets|Intermateability UL Listed and CSA certified interchangeability with competitive products|Suitable for use in hazardous location applications when installed according to NEC articles 501.10(b), class I, division 2, (suitable for use in class I zone 2 applications) 502.10 and 503.10|Flat-back design for greater wiring capacity and mounting stability|Smooth integral wire bushings protects cable
- Intermateability UL Listed and CSA certified interchangeability with competitive products
- Suitable for wet locations when used with gaskets
- Innovative spring clip design for installation ease and repeat usage
- Smooth integral wire bushings protects cable
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal
- High quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets
- Flat back design for greater wiring capacity and mounting stability
- Suitable for use in hazardous location applications when installed according to NEC articles 501.10(b), class I, division 2, (suitable for use in class I zone 2 applications) 502.10 and 503.10
- To provide access to conductors for pulling, splicing and maintenance
- Tri-coat finish of electro zinc, chromate sealant and electrostatically applied powder coating
- Brand: Hubbell KillarkCapacity: 48Color: GrayConnection Type: ThreadDimensions: 8-1/4 in L x 3-1/16 in W x 4-5/16 in HEnclosure: NEMA 3Finish: Tri-CoatedForm: 7
