Hubbell Wiegmann N12483608

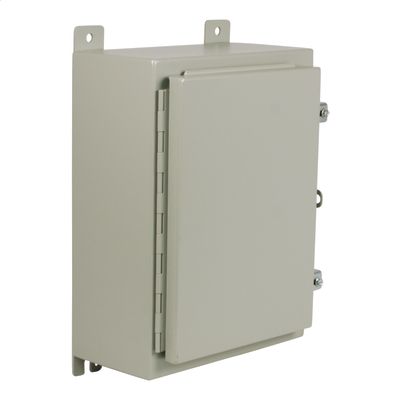

WIEGMANN N12483608 1-DOOR ENCLOSURE, 36 IN W X 8 IN D X 48 IN H, NEMA 12/13, CARBON STEEL
Enclosure General Purpose
513229
N12483608
Hubbell Wiegmann
$0.00
/ ea
Wiegmann Enclosure, 1-Door, Series: N12, 36 in Width, 8 in Depth, 48 in Height, NEMA 12/13, 33 in W x 45 in H Panel, Lock: Padlock, 13824 cu-in, Wall Mount, Carbon Steel, Polyester Powder Coated, Gray
- Features
- Intended for use in housing electrical and electronic controls, instruments, components, and associated wiring, these enclosures incorporate hinged doors which provide convenient access, designed for indoor use in protecting components from dust, dirt, oil and water
- Continuously plasma welded seams
- Door and body stiffeners are provided in larger enclosures for extra rigidity
- Rolled lip on three sides of door and all sides of enclosure opening is provided to exclude liquids and contaminants
- Quick and easy to operate door clamps are provided
- Doors removable by pulling heavy gauge continuous hinge pin
- Hasp and staple is provided for padlocking
- Print pocket is provided
- Doors are sealed with poured in place polyurethane gasket
- External mounting feet for mounting enclosure
- Grounding provisions provided
- ANSI-61 gray polyester powder inside and out finish
- Body and doors fabricated from 14 ga steel
- 3 door clamps
- Enclosures are supplied with closed cell neoprene gasket (not foam in place)
