Hubbell Wiring HBL2315

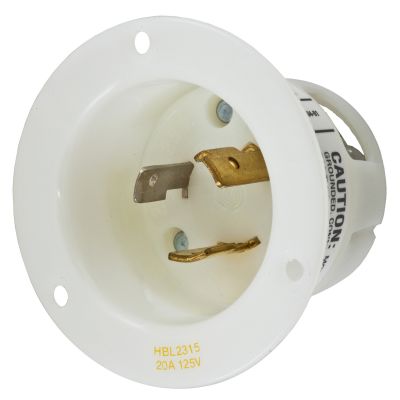

Wiring Device-Kellems Twist-Lock Insulgrip HBL2315 1-Phase Extra Heavy Duty Grounding Screw Mount Locking Flanged Inlet With Mounting Screw, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Plugs Connectors
144289
HBL2315
Hubbell Wiring
$0.00
/ ea
Wiring Device-Kellems, HBL2315, Locking Flanged Inlet, 1-Phase Extra Heavy Duty Grounding Screw Mount, Series: HBL, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, L5-20P NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP44 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, White, 2.88 x 2.88 x 2.09 in Dimensions
- Features
- Impact resistant thermoplastic construction
- Backwired terminations for ease of installation
- 32 to 10 AWG multiple drive terminal screws slotted, Phillips and Robertson
- Withstands 2000 VAC minimum dielectric voltage
- 16 to 8 AWG terminal accommodation
- Clear polycarbonate terminal retainer
- Brass blade material, NO 10 to 32 brass (white finish on neutral screw when used) multi-drive terminal screw, NO 10 to 32 brass (green finish) multi-drive ground screw
- 0.08 in steel nickel plated terminal clamp
- Steel zinc plated body holding screw
- Natural white nylon body contact carrier material and flanged casing material
- Nickel plated brass round head screws mounting screw material
