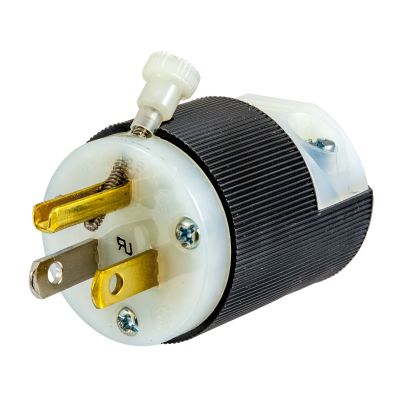

Hubbell Wiring HBL5280C
Straight Blade Devices, Male Plug, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 15A 125V, 5-15P, Black and White, Single Pack, With.
Supporting Information
- Fast lead assembly screws|Ribbed nylon housing is impact and chemical resistant|VARI-SIZE adjustable cord clamp|Beveled housing prevents snagging
- Anchor-Lock
- Grounding plug
- Cord mounted
- 18 to 10 AWG solid or stranded copper conductor terminal accommodation
- Withstands 2000 VAC dielectric voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Nylon blade holder and cord clamp, polycarbonate retainer, brass contact blade and ground screw copper alloy ground contact blade, nickel plated brass terminal screw
- Individually molded face for each blade configuration keeps debris OUT of plug interior
- Roomy wiring chamber provides ample space for wiring
- Individual wiring terminals completely enclosed in their own separate chambers
- Powerful, off setting cord grips clamp on individual conductors and outer cord jacket to prevent strain on terminals
- Ribbed nylon housing is impact and chemical-resistant
- Beveled housing prevents snagging
- Integral VARI-SIZE® insert accommodates a wide range of cord diameters
- VARI-SIZE® pointer set to smaller than gauge position
- Multiple drive screws provide screwdriver versatility
- Powerful off setting cord grips clamp on individual conductors and outer cord jacket to prevent strain on terminations
- Catalog number is visible ON the device while in use for easy identification
- Transparent angled wiring entrance holes permit straight in conductor insertion
- Brand: Hubbell WiringAmperage Rating: 15Color: Black/WhiteCord Diameter: 0.23 to 0.72Dimensions: 1.52 x 1.52 x 1.96Enclosure: IP20
