Hubbell Wiring HBL52CM69C

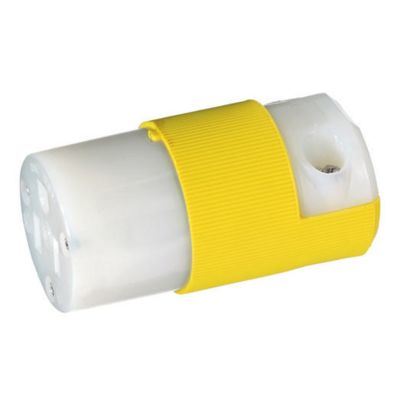

Wiring Device-Kellems Insulgrip HBL52CM69C Female Grounding Insulated Standard Cord Mount Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Plugs Connectors
360017
HBL52CM69C
Hubbell Wiring
$0.00
/ ea
Wiring Device-Kellems, HBL52CM69C, Straight Blade Connector, Female Grounding Insulated Standard Cord Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Polycarbonate, Yellow, 2.78 x 1.52 x 2.78 in Dimensions
- Features
- Individual wiring terminals completely enclosed
- Powerful, offsetting cord grips clamp on individual conductors
- Roomy wiring chamber provides ample space for wiring
- Clear polycarbonate retainer
- Natural nylon cord clamp and contact holder
- #8-32 brass, multiple drive terminal screw
- #8-32 brass, multiple drive (green) ground screw
- 0.04 in copper alloy power contacts
- Withstands 2000 VAC minimum dielectric voltage
- Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current at a power factor of 75%
- Terminals identified in accordance with UL 498 (brass, white, green)
- 18 to 10 AWG copper stranded or solid conductor only terminal accommodation
- Ratings are a permanent part of the device
- Corrosion resistant
- 14 to 12 AWG conductor range
- Indoor dry unless protected by additional means
- Cord mounting
