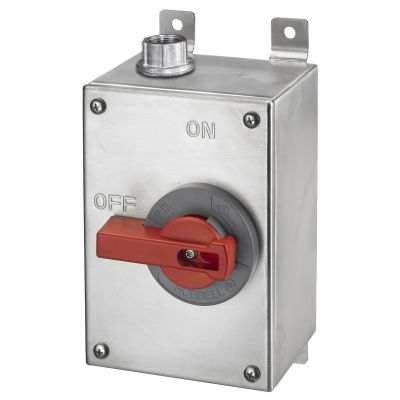

Hubbell Wiring HBLDS3SSVFD
Switches and Motor Controls, Industrial Grade, VFD Drive, Disconnect Switches, Unfused Switch, Three Pole, 30A 600V AC, Screw Terminals, Stainless Steel, NEMA 4X Enclosure
Supporting Information
- Formed in nonporous 304 stainless steel|Accepts up to 2 Auxiliary contacts
- Formed in nonporous 304 stainless steel
- Fixed offset 1/4 in mounting feet meet NEC airspace requirements for metal enclosures
- Labelless markings on the cover
- Highly visible red handle which meets OSHA lockout/tagout capabilities
- Cover cannot be removed when switch is in the "ON" position
- Internal frame automatically bonds all grounds
- Molded in conduit opening and field installed hub
- Reversible interior accommodates top or bottom conduit opening
- Integrates a verified break before break auxiliary contact factory installed in HBLDS series
- Prevents downtime from out of sequence equipment shutdowns
- Brand: Hubbell Wiringactuator type: LeverAmperage Rating: 30Contact Form: 2-PositionDimensions: 8.38 x 4.87 x 5.39Enclosure Type: NEMA 4XFrequency Rating: 60Horsepower: 15Material: CompositeMounting Type: FootNumber of Poles: 3
