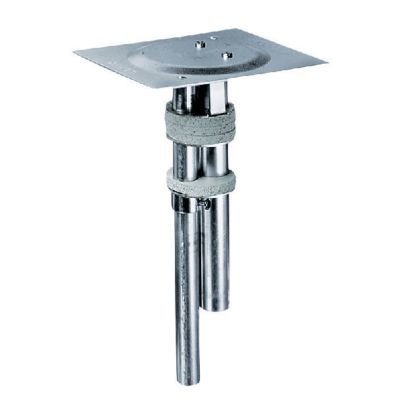

Hubbell Wiring PT27A
Fire-Rated Poke-Through Pedestal Series, 2" Though Floor Fitting
Supporting Information
- Complies with UL 514A requirements for scrub water protection
- For use in 1, 1 1/2, 2, 3 or 4 hr rated unprotected reinforced concrete floors or in 1, 2 or 3 hr rated floors employing steel floor units and concrete topping fire rating
- 2-1/4 to 7 in THK floor
- Through-floor fitting to be installed in a 2 in Dia hole
- Minimum of 2 ft on centers and not more than one unit per 65 sq-ft of floor area in each span UL installation spacing
- 2 in through floor fitting
- Contains 3/4 in EMT tube for low voltage cabling and 1/2 in EMT tube for power wiring
- 1/2 in EMT power tube handles up to ten #12 AWG Type THHN wires or up to six 12 AWG and two 10 AWG Type THHN wires
- Brand: Hubbell WiringCover Material: AluminumCover Size: 2 in DiaDevice Type: Fire RatedFinish: Painted/MetallicHole Size: 2Length: 9-1/4Material: CompositeSeries: FRPT PedestalSuitable For Use With: Hubbell FR280, FR480 and FR680 Series Pedestal, In-Floor Delivery SystemType: Multi-Service Standard
