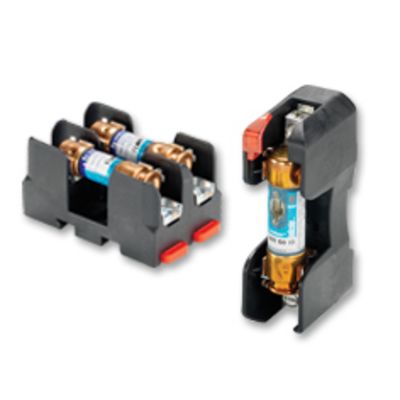

Littelfuse LFH606003C
The new Littelfuse Class H blocks offer many advantages over previous generations that are noted in the features and benefits section. Class H and Class R fuse blocks are dimensionally the same, but Class R blocks incorporate a rejection feature, which only allows Class R fuses to be inserted.
Supporting Information
- Indication offered on most 250 and 600 VAC versions|DIN rail releasable for all non-knife blade style fuses|Only 1-hand is required to release from DIN rail (lock open lock closed)|Universal mounting holes make for easy replacement|Clip designs maximize electrical contact and minimize heat rise|Reinforcing clips are standard on all class H fuse blocks rated 100 A and higher|Solid/stranded wire
- Indication offered on most 250 and 600 VAC versions
- DIN rail releasable for all non-knife blade style fuses
- Only 1-hand is required to release from DIN rail (lock open lock closed)
- Universal mounting holes make for easy replacement
- Clip designs maximize electrical contact and minimize heat rise
- Reinforcing clips are standard on all class H fuse blocks rated 100 A and higher
- Solid/stranded wire
- Brand: LittelfuseAmperage Rating: 600Class: HColor: BlackConnection Type: Box LugDimensions: 12.5 in W x 4.36 in D x 17 in HMounting Type: Bolt-InNumber of Poles: 3Series: LFHSuitable For Use With: NLS Series FuseTemperature Rating: 130
