nVent Hoffman PGH1S5

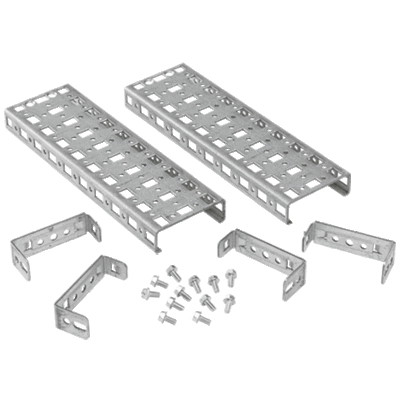

Hoffman ProLine Grid Strap, 1-Row Hole Pattern, Series: P20, 0.98 in Height, Surface Mount, For Use With: ProLine 500 mm D-Frame Modular Enclosures, Steel, Zinc Plated, Gray
Supporting Information
- They are provided with specially designed rectangular holes to allow the use of cage nuts or front loading cage nuts|Mounting holes are provided on 25 mm centers|Grid straps are available with either 1 row or 3 rows of holes and are furnished in pairs|Mounting hardware to attach grid straps to the frame or to other grid straps is included|Can be mounted left to right horizontally between front to back pairs or from the sides of the ProLine frame|When mounting width-wise from vertical to vertical, the grid strap chosen must be 100mm greater than the nominal size (i.e. 800mm wide enclosure would take a 900mm grid strap in this orientation)|Furnished in pairs, and constructed from 14 ga (1.75mm) conductive steel
- Grid straps are 14 ga plated steel
- They are provided with specially designed rectangular holes to allow the use of cage nuts or front loading cage nuts
- Mounting holes are provided on 25 mm centers
- Grid straps are available with either 1 row or 3 rows of holes and are furnished in pairs
- Mounting hardware to attach grid straps to the frame or to other grid straps is included
- Can be mounted front to back horizontally across the bottom or sides of the ProLine™ frame
- Can be mounted left to right horizontally between front to back pairs or from the sides of the ProLine™ frame
- Can be mounted vertically between horizontally mounted grid straps
- Brand: nVent HoffmanColor: GrayFinish: Zinc Plated
