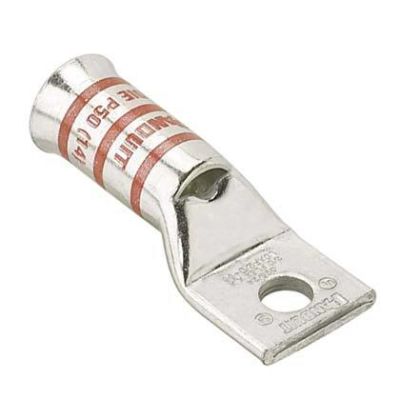

Panduit LCAF500-12-6
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAF, Flexible Copper Conductor, 500 kcmil, 535.3 kcmil Conductor, Die Code: P99, 35 kV, 1/2 in Stud, Straight Tongue, 1.89 in W x 0.26 in THK Tongue, 4.99 in Overall Length, Standard/Flared Barrel, 1.03 in ID x 1.55 in OD x 2.28 in L Barrel, Specifications: 2-5/16 in L Wire Strip, Tin Plated Finish, 90 deg C, 23-1/8 in Mounting Hole, Copper, Pink
Supporting Information
- Color-coded bands for proper die selection and crimp placement|Can be used with flex conductor class K, M and diesel locomotive|Flared entry prevents bent back strands when inserting fine strand conductor into barrel|Inspection window to assure complete conductor insertion|Tin-plated to inhibit corrosion|Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- Color-coded bands for proper die selection and crimp placement
- Can be used with flex conductor class K, M and diesel locomotive
- Flared entry prevents bent back strands when inserting fine strand conductor into barrel
- Inspection window to assure complete conductor insertion
- Tin-plated to inhibit corrosion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- Brand: PanduitBarrel Size: 1.03 in ID x 1.55 in OD x 2.28 in LBarrel Type: Flared/StandardColor: PinkConductor size: 500 kcmil, 535.3 kcmilConductor Type: Flexible CopperDie Code: P99
