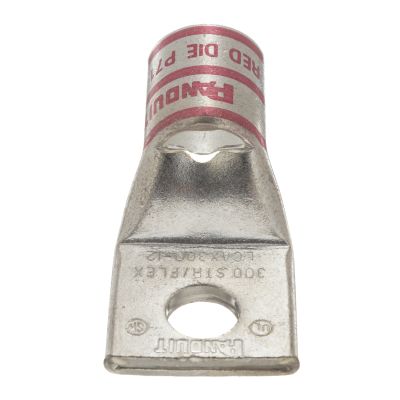

Panduit LCAX300-12-6

Panduit Pan-Lug LCAX300-12-6 1-Hole Compression Connector Lug, 300 kcmil, 313.1 kcmil Flexible Copper Conductor, Die Code: P71, 42.767 in Stud, Tin Plated Copper
Lug Compression Connectors
7019416 LCAX300-12-6
Panduit
$0.00 / ea

Panduit LCAX300-12-6
Panduit Pan-Lug Compression Connector Lug, 1-Hole, Series: LCAX, Flexible Copper Conductor, 300 kcmil, 313.1 kcmil Conductor, Die Code: P71, 35 kV, 42.767 in Stud, Straight Tongue, 1.39 in W x 0.18 in THK Tongue, 2.91 in Overall Length, Standard Barrel, 0.76 in ID x 0.95 in OD x 1.19 in L Barrel, 1-1/4 in L Wire Strip, 90 deg C, 1-1/4 in Mounting Hole, Tin Plated Copper, Red
QTY
Add to Wishlist
  • Features
  • Color-coded bands for proper die selection and crimp placement
  • Inspection window to assure complete conductor insertion
  • Tin plated to inhibit corrosion
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
  • Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
