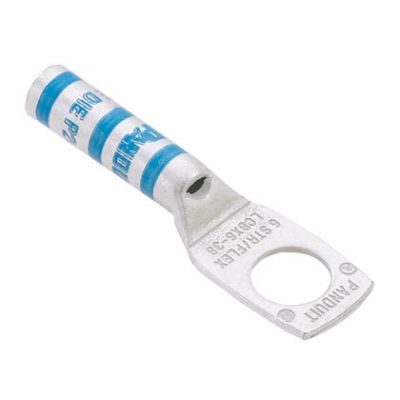

Panduit LCBX2/0-38-X
Panduit Pan-Lug Compression Connector Lug, 1-Hole, Series: LCBX, Extra-Flexible/Flexible/Stranded Copper Conductor, 2/0 AWG Conductor, Die Code: P45, 35 kV, 42.95 in Stud, Straight Tongue, 0.96 in W x 0.13 in THK Tongue, 2.7 in Overall Length, Long Barrel, 0.51 in ID x 0.64 in OD x 1.5 in L Barrel, 1.56 in L Wire Strip, 90 deg C, 15-5/8 in Mounting Hole, Tin Plated Copper, Black
Supporting Information
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance|Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive|Generously beveled wire entry prevents bent back strands when inserting conductor into barrel|Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection|Inspection window to visually assure full conductor insertion|Tin plated to inhibit corrosion|For use with flexible, extra-flexible and code stranded copper conductors|Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- For use with flexible, extra-flexible and code stranded copper conductors
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- Brand: PanduitBarrel Size: 0.51 in ID x 0.64 in OD x 1.5 in LBarrel Type: LongColor: BlackConductor size: 2/0Conductor Type: Extra-Flexible/Flexible/Stranded CopperDie Code: P45
