Panduit LCC350-12-X

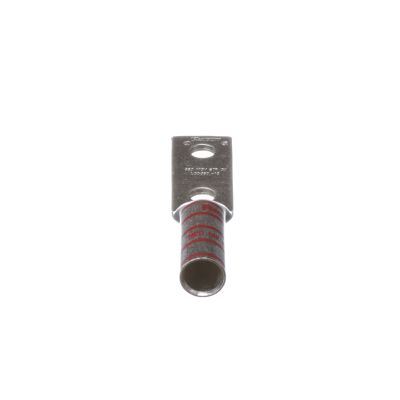

Panduit Pan-Lug LCC350-12-X 2-Hole Compression Lug Connector, 350 kcmil Stranded Copper Conductor, Die Code: P71, 1/2 in Stud, Tin Plated Copper
Lug Compression Connectors
29409 LCC350-12-X
Panduit
$0.00 / ea

Panduit LCC350-12-X
Panduit Pan-Lug Compression Lug Connector, 2-Hole, Series: LCC, Stranded Copper Conductor, 350 kcmil Conductor, Die Code: P71, 35 kV, 1/2 in Stud, Standard/Straight Tongue, 1.28 in W x 0.17 in THK Tongue, 5.99 in Overall Length, Long/Standard without Inspection Window Barrel, 0.7 in ID x 0.88 in OD x 2.24 in L Barrel, Specifications: 1-3/4 in Stud Hole Spacing, 2-5/16 in L Wire Strip, Tin Plated, 90 deg C, 2-5/16 in Mounting Hole, Tin Plated Copper, Red
QTY
Add to Wishlist
  • Features
  • Straight angle
  • Inspection window
  • color-coded barrel marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Tin-plated to inhibit corrosion
  • For use with stranded copper conductor
  • The long barrel maximizes the number of crimps and provides premium wire pullout strength and performance
  • Enclosed barrel prevents corrosive material from entering barrel when used in harsh environment
  • 1-3/4 in hole spacing
  • Consult cable manufacturer for voltage stress relief instructions with application greater than 2000 V
  • The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel
