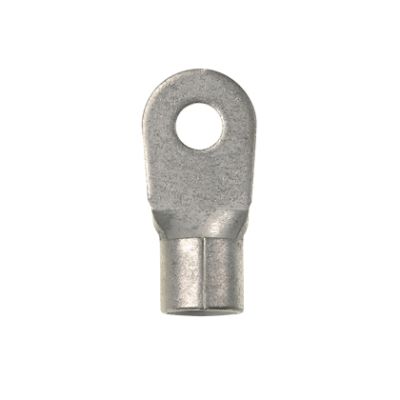

Panduit P8-10R-Q

Panduit Pan-Term P8-10R-Q Non-Insulated Ring Terminal, 8 AWG Conductor, 1.14 in L, Brazed Seam/Standard/Internal Serration Barrel, Copper, Metallic
Ring Terminals
549430 P8-10R-Q
Panduit
$0.00 / ea

Panduit P8-10R-Q
Panduit Pan-Term Ring Terminal, Non-Insulated, Series: P-R Series, Stranded Conductor, 8 AWG Conductor, #10 Stud, 1.14 in Length, Brazed Seam/Internal Serration/Standard Barrel, 0.19 in ID x 0.27 in OD Barrel, Ring Tongue, 0.47 in W x 0.04 in THK Tongue, 2000 V, Specifications: 3/8 in L Wire Strip, 0.43 in Clearance, 0.41 in Mounting Hole, Ring Shape Enclosure, 302 deg F, Copper, Tin Plated, Metallic
QTY
Add to Wishlist
  • Features
  • Ring tongue design assures a secure connection in high vibration applications
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Insulation support helps to prevent wire damage in bending applications
  • Brazed seam protects terminal barrel from splitting during the crimp process
