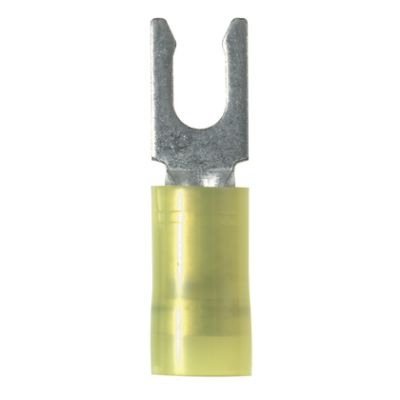

Panduit PN10-14LF-L
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PN-LF, Copper Stranded Conductor, #10 Conductor, M6 Stud, 1.17 in Length, Sleeved Barrel, Locking Fork Tongue, 0.46 in W x 0.04 in THK Tongue, 600 V, Specifications: 9/32 in L Wire Strip, 0.12 to 0.225 in Dia Nylon Insulation, 0.32 in Clearance, Standard Barrel Configuration, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Yellow
Supporting Information
- Fork design provides for fast and easy installation, without the need to remove fastener|Internal barrel serrations assure good wire contact and maximum tensile strength|Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications|Brazed seam protects terminal barrel from splitting during the crimp process|Insulation support helps to prevent wire damage in bending applications
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Insulation support helps to prevent wire damage in bending applications
- Brand: PanduitBarrel Type: SleevedColor: YellowConductor size: #10Conductor Type: Copper StrandedFinish: Tin Plated
