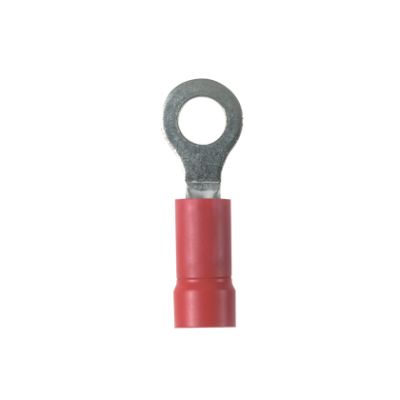

Panduit PV18-4R-CY
Panduit Pan-Term Ring Terminal, Type PV-R, Solid/Stranded Conductor, 22 to 18 AWG Conductor, #4 Stud, 0.84 in Length, Brazed Seam/Funnel Entry/Insulation Support/Internal Serration Barrel, Ring Tongue, 0.25 in W x 0.03 in THK Tongue, 600 VAC, 0.15 in Dia Vinyl Insulation, 0.22 in Clearance, 0.31 in Mounting Hole Size, 5/16 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Red
Supporting Information
- Nylon insulation INSULUG type YAE-G nylon insulated terminals are designed with a multi-finger insulation grip for paper|EPR and other elastic or hard to grip Insulations|The metal fingers firmly grip the insulation providing superior holding characteristics|Cable support and strain relief|Multi-finger insulation grip provides superior insulation holding characteristics|Especially on epr and other elastic type insulations|Brazed seam provides stronger more durable termination|Manufactured of pure electrolytic copper provides maximum conductivity|Low resistance and ductility for excellent crimp forming properties|Deep V groove|Inner barrel serrations, provide optimum conductivity|Types YAE-G and YAE-N terminals are rated 105 deg c and meet military standard AS25036 class 2 and SAE-AS7928 requirements|Pure electrolytic copper
- Nylon insulation INSULUG™ type YAE-G nylon insulated terminals are designed with a multi-finger insulation grip for paper
- EPR and other elastic or hard to grip Insulations
- The metal fingers firmly grip the insulation providing superior holding characteristics
- Cable support and strain relief
- Multi-finger insulation grip provides superior insulation holding characteristics
- Especially on epr and other elastic type insulations
- Brazed seam provides stronger more durable termination
- Manufactured of pure electrolytic copper provides maximum conductivity
- Low resistance and ductility for excellent crimp forming properties
- Deep V groove
- Inner barrel serrations, provide optimum conductivity
- Types YAE-G and YAE-N terminals are rated 105 deg c and meet military standard AS25036 class 2 and SAE-AS7928 requirements
- Pure electrolytic copper
- Brand: PanduitBarrel Type: Brazed Seam/Funnel Entry/Insulation Support/Internal SerrationColor: RedConductor size: 22 to 18Conductor Type: Solid/StrandedFinish: Tin Plated
