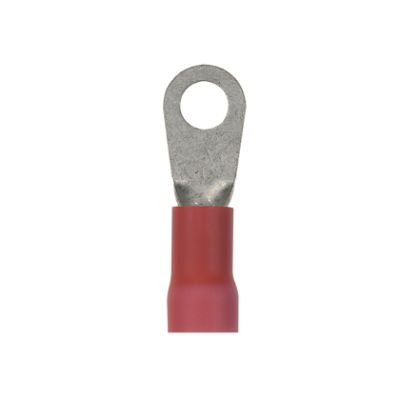

Panduit PV8-38R-TY

Panduit Pan-Term PV8-38R-TY PV-R Loose Piece Ring Terminal, 8 AWG Conductor, 1.64 in L, Brazed Seam/Funnel Entry/Internal Serration Barrel, Copper, Red
Ring Terminals
6798722 PV8-38R-TY
Panduit
$0.00 / ea

Panduit PV8-38R-TY
Panduit Pan-Term Ring Terminal, Loose Piece, Series: PV-R, Stranded Conductor, 8 AWG Conductor, 3/8 in Stud, 1.64 in Length, Brazed Seam/Funnel Entry/Internal Serration Barrel, Ring Tongue, 0.59 in W x 0.04 in THK Tongue, 600 VAC, 3/8 in L Wire Strip, 0.51 in Clearance, 0.28 in Dia Vinyl Insulation, 0.38 in Mounting Hole, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Red
QTY
Add to Wishlist
  • Features
  • Manufactured of pure electrolytic copper provides maximum conductivity, low resistance and ductility for excellent crimp forming properties, deep V-groove
  • Inner barrel serrations, provide optimum conductivity, reliability and holding power
  • Type YAE-N terminals are rated 105 deg C and meet military standard AS25036 Class 2 and SAE-AS7928 requirements
  • Brazed seam provides stronger more durable termination
  • Multi-finger insulation grip - provides superior insulation holding characteristics, especially on EPR and other elastic type insulations
  • Insulug type YAE-N nylon insulated terminals are designed with a multi-finger insulation grip for paper, EPR and other elastic or hard to grip insulations
  • The metal fingers firmly grip the insulation providing superior holding characteristics, cable support and strain relief
  • Pure electrolytic tin plated copper
