Rittal 8615500

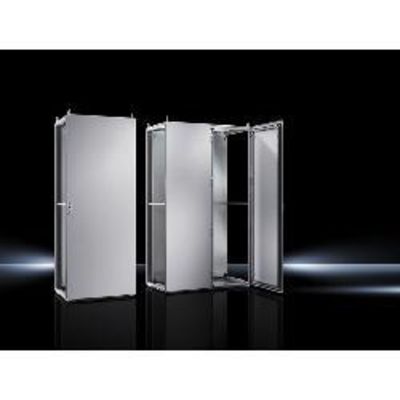

Rittal Baying System Enclosure, 1-Door, Series: TS 8, 24 in Width, 20 in Depth, 47 in Height, NEMA 12/IP55, Hinged Cover, Lock: 3 mm Double Bit, 1500 lb, Floor Mount, Carbon Steel, Powder Coated, Light Gray
Supporting Information
- Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from sheet steel, saves considerable space and facilitates easy internal installation|It also allows a baying arrangement on all sides|In addition, the integrated, automatic potential equalization of all enclosure panels and the triple machining of the surface ensures maximum safety|RAL 7035 light gray color|1.5 mm THK carbon steel enclosure frame, 1.5 mm THK carbon steel roof, 2 mm carbon steel door, 1.5 mm carbon steel rear wall, 1.5 mm carbon steel base plates, 3 mm carbon steel mounting plate|Dipcoat primed enclosure frame, door, roof and rear panel, powder-coated on the outside, textured paint, zinc-plated mounting plate and base plates|43 in H x 20 in W mounting plate
- Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from sheet steel, saves considerable space and facilitates easy internal installation
- It also allows a baying arrangement on all sides
- In addition, the integrated, automatic potential equalization of all enclosure panels and the triple machining of the surface ensures maximum safety
- RAL 7035 light gray color
- 1.5 mm THK carbon steel enclosure frame, 1.5 mm THK carbon steel roof, 2 mm carbon steel door, 1.5 mm carbon steel rear wall, 1.5 mm carbon steel base plates, 3 mm carbon steel mounting plate
- Dipcoat primed enclosure frame, door, roof and rear panel, powder-coated on the outside, textured paint, zinc-plated mounting plate and base plates
- 43 in H x 20 in W mounting plate
- Brand: RittalCapacity: 1500Color: Light GrayCover Type: HingedDepth: 20Finish: Powder Coated
