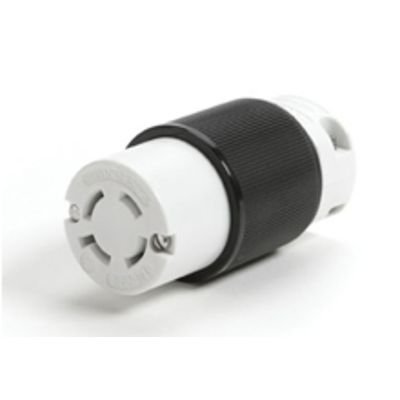

Woodhead 29T75
Woodhead® Safeway® Connector, 3-Phase Female Heavy Duty, Series: 130145, 250 VAC, 30 A, 3 Pole, 4 Wires, L15-30 NEMA Rating, Industrial Grade, 0.425 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2.14 in Dia x 2.64 in L Dimensions
Supporting Information
- NEoTEX paracril OZO rubber body yield the best performance for abrasion, chemical exposure and temperature extreme within the Super-Safeway offering|Rugged nylon body within the Safeway offering provide exceptional durability and performance|Color coded 1/4 in terminal screw preset in open position, ready to wire|Wire screw terminal are tri-drive to be used with straight blade, Phillips and square drive screw driver|Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation|Transparent wiring guide to verify all wire strand are in place before securing wire|Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life|2-piece cord clamp strain relief include tri-drive screw to firmly secure the cord|Stainless steel face screw|Nylon face insert|Brass wire saddle clamp|Steel, zinc plated cord clamp screw
- NEoTEX® paracril OZO rubber body yield the best performance for abrasion, chemical exposure and temperature extreme within the Super-Safeway® offering
- Rugged nylon body within the Safeway® offering provide exceptional durability and performance
- Color coded 1/4 in terminal screw preset in open position, ready to wire
- Wire screw terminal are tri-drive to be used with straight blade, Phillips® and square drive screw driver
- Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strand are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- 2-piece cord clamp strain relief include tri-drive screw to firmly secure the cord
- Stainless steel face screw
- Nylon face insert
- Brass wire saddle clamp
- Steel, zinc plated cord clamp screw
- Brand: WoodheadAmperage Rating: 30Color: Black/WhiteCord Diameter: 0.425 to 1.15Dimensions: 2.14 in Dia x 2.64 in LGrade: Industrial
