Woodhead 60W47BLK

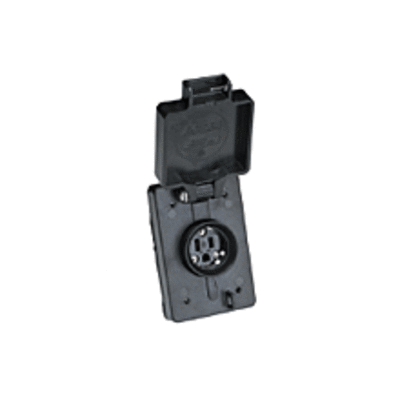

Woodhead Straight Blade Receptacle, Female Single, Series: 130146, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15 NEMA Rating, IP67 Enclosure, -40 to 75 deg C, Screw Terminal, NEoTEX Paracril OZO Rubber, Black
Supporting Information
- Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure wash down up to 1000 psi|Color coded 1/4 in terminal screws preset in open position, ready to wire|Wire screw terminals are tri-drive to be used with straight blade, Phillips and square drive screw drivers|Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation|Transparent wiring guide to verify all wire strands are in place before securing wire|Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life|3-piece strain relief seals cord without damaging the cord
- Brand: WoodheadAmperage Rating: 15Color: BlackEnclosure: IP67Material: NEoTEX Paracril OZO RubberNema Rating: NEMA 5-15Number of Poles: 2Number Of Wires: 3Series: 130146Temperature Rating: -40 to 75terminal type: Screw
