Woodhead 69W49

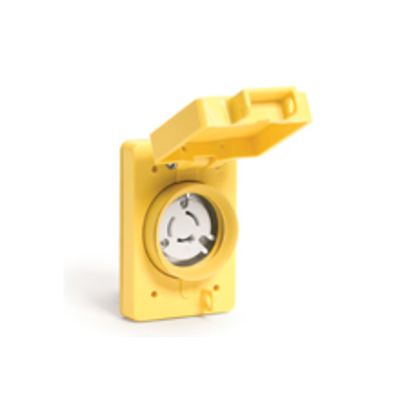

Woodhead® Watertite® Locking Blade Receptacle, Female, Series: 130147, 277 VAC, 30 A, 3 hp, 2 Poles, 3 Wires, NEMA L7-30, NEMA 1/3/4/4X/5/6/6P/12/IP55/IP56/IP57/IP65/IP66/IP67 Enclosure, 0.437 to 1.1 in Cord Dia, Screw Terminal, NEoTEX® Paracril OZO Rubber, Yellow
Supporting Information
- Color coded 1/4 in terminal screws preset in open position, ready to wire|Wire screw terminals are tri-drive to be used with straight blade, Phillips and square drive screw drivers|Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation|Transparent wiring guide to verify all wire strands are in place before securing wire|Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life|3-piece strain relief seals cord without damaging the cord
- Color coded 1/4 in terminal screws preset in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips and square drive screw drivers
- Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- 3-piece strain relief seals cord without damaging the cord
- Brand: WoodheadAmperage Rating: 30Color: YellowCord Diameter: 0.437 to 1.1Enclosure: NEMA 1/3/4/4X/5/6/6P/12/IP55/IP56/IP57/IP65/IP66/IP67
