Stahlin JW2016HPL

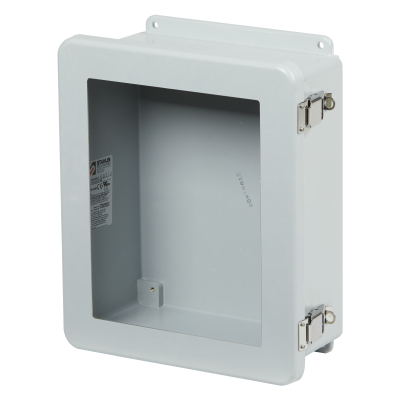

Stahlin JW2016HPL HPL Configuration Enclosure With Flush Bonded Window, 16 in W x 8 in D x 20 in H, NEMA 1/3R/4X/6P/12, Fiberglass Reinforced Polyester
Enclosures Non-Metallic
5233923 JW2016HPL
Stahlin
$0.00 / ea

  • Color: Glacier Gray
  • Cover Type: Hinged
  • Depth: 8
  • Finish: Smooth
  • Height: 20
  • Lock: Padlock Latch
  • Material: Fiberglass Reinforced Polyester
  • Mounting Type: Flange
  • Nema Rating: NEMA 1/3R/4X/6P/12
  • Panel Size: 14.88 in W x 18.88 in H
  • Series: JW Series
  • Temperature Rating: -76 to 274
  • Type: HPL Configuration
  • Width: 16
The Stahlin J Series product line was developed as an industrial enclosure for harsh, aggressive environments. Rugged design combined with tough, durable materials, for extreme reliability in tough environments.
  • Features
  • Overhang cover on smooth sided base
  • High temperature, flame-retardant, non-corrosive
  • All stainless hardware latches and screws
  • Full length stainless steel hinge
  • Chemically-resistant fiberglass-reinforced polyester
  • Submersible, non-corrosive, environmental design
  • Stainless steel retention chain on screw covers
  • Continuous polyurethane gasket
  • Unobstructed side walls, built-in mounting capabilities and the strength characteristics associated with a protective wrap-around cover that is hinged, latched or screwed down
  • Electrical and instrument enclosures
