Eaton B-Line Inc. 8848-12LW

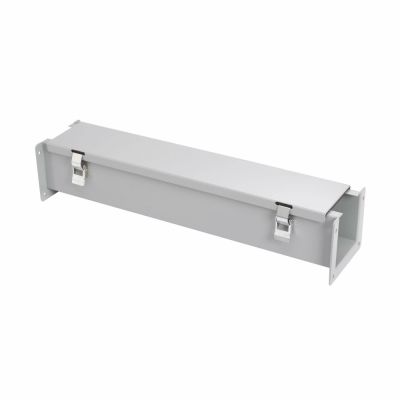

B-Line 8848-12LW Straight Section Wireway, 48 in L x 8 in W x 8 in H, Hinged/Latched Cover, Steel
Low Voltage Raceway
7018183
8848-12LW
Eaton B-Line Inc.
$0.00
/ ea
- Color: Gray
- Cover Type: Hinged/Latched
- Finish: Phosphate Undercoated/Polyester Powder Coated/Painted
- Height: 8
- Length: 48
- Material: Steel
- Nema Rating: NEMA 12/IP54
- Series: LW
- Type: Straight Section
- Width: 8
Eaton B-Line series wireway, 8" height, 48" length, 8" width, 12LW wireway, Wireway hanger, Hinged cover, NEMA 12, Steel, Oil-resistant gasket, Hinged, ANSI 61 gray, 14 gauge
- Features
- Wireway body and cover are fabricated from 14 ga steel
- Flanges are 10 ga steel
- All continuous welded seams are finished smooth
- External and internal edges are rounded to prevent injury or damage to cable
- Covers are secured to the wireway and fitting body with heavy duty butt hinges and quick release latches
- Covers have a fixed, oil-resistant gasket
- An oil-resistant gasket is provided for installation between flanges
- All covers and sealing plate can be hinged completely open or removed to allow for continuous lay-in cable feed
- All straight sections and fitting are furnished with sealing plate kits
- C2 discount schedule
- D90 subclass
- Houses runs of control and power cable
- Wash and phosphate undercoat
- Hardware and latches are zinc plated
