ABB Installation Products STEX100

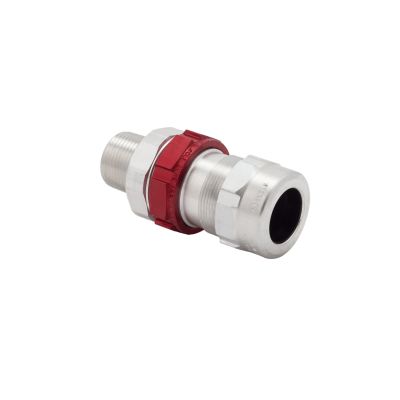

T&B Fittings Star Teck Extreme XP STEX100 Teck Cable Connector, 1 in Trade, 0.86 to 1.205 in Cable Openings, Aluminum
Channel-Strut Accessories
7058676
STEX100
ABB Installation Products
$0.00
/ ea
- Cable Openings: 0.86 to 1.205
- Cable Type: JMC/TECK
- Color: Red/Silver
- Connection Type: NPT
- Dimensions: 2.3 in Dia x 3.58 in L
- Material: Aluminum
- Series: STEX
- Trade Size: 1
Star Teck Extreme hazardous location aluminum jacketed cable fitting. Hub size of 1 inch. Range over jacket from 0.860 - 1.205 inch.
- Features
- Patented power grip grounding ring
- Removable armor stop for greater cable ranges
- Patented elastomeric collar ring/bushing for greater cable ranges
- Built-in jacket stripping gauge on gland nut
- Gland nut can be tightened with hammer and screwdriver
- Provides means for passing armored, metal clad, jacketed cable through a bulkhead or enclosure in hazardous areas
- Form a mechanical grip and water and/or oil resistant seal for cord
- Provide grounding continuity of cable armor
- 16 cc sealing compound required-liquid
- 1-1/4 in L strip
- 700 in-lb gland torque
- 0.780 to 1.125 in cable range over armor
- 0.650 in Dia throat with end stop
- 0.833 in Dia throat without end stop
