ABB Installation Products STX125-469
T&B Fittings Star Teck XP STX125-469 Teck Cable Connector, 1-1/4 in Trade, 1.187 to 1.375 in Cable Openings, Aluminum
Channel-Strut Accessories
6839087
STX125-469
ABB Installation Products
$0.00
/ ea
- Cable Openings: 1.187 to 1.375
- Cable Type: JMC/TECK
- Color: Red/Silver
- Connection Type: NPT
- Dimensions: 2.51 in Dia x 3.05 in L
- Material: Aluminum
- Series: STX
- Trade Size: 1-1/4

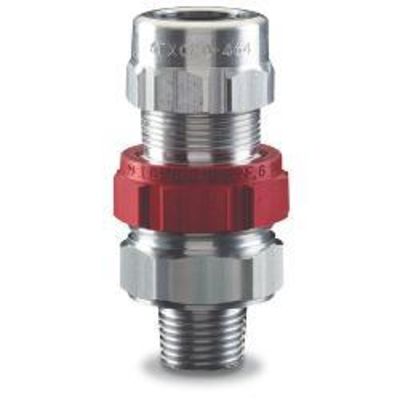

Star Teck hazardous location aluminum jacketed cable fitting. Hub size of 1-1/4 inch. Range over jacket from 1.187 - 1.375 inch.
- Features
- Sealing chamber is easier to fill, requires less sealing compound, saves time and material
- Flame path is optimally designed to allow for easy insertion into hub, quick turn lock
- Union features twist-on action, red color for high visibility
- Exclusive power grip, provides grip that is high up on cable armor non-magnetic stainless steel power grip grounding ring
- Provides means for passing armored, metal clad, jacketed cable through a bulkhead or enclosure in hazardous areas
- Low profile gland nut
- Form a mechanical grip and water and/or oil resistant seal for cord
- Provide grounding continuity of cable armor
- 1.077 to 1.295 in cable range over armor
