Hubbell Killark HKB-20

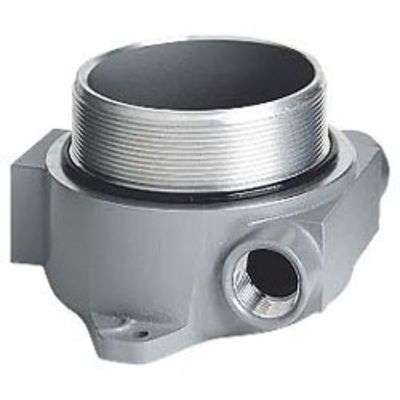

Killark HKB-20 Compact Round Small Instrument/Device Enclosure, 4-3/4 in W x 3-3/16 in D, NEMA 4 NEMA Rating, Copper-Free Aluminum
Conduit Body
7351877
HKB-20
Hubbell Killark
$0.00
/ ea
- Cable Entry Size: 3/4 in NPT
- Capacity: 31
- Color: Gray
- Cover Type: Thread
- Depth: 3-3/16
- Finish: Polyester/Epoxy Powder Coated
- Material: Copper-Free Aluminum
- Mounting Type: Lug
- Nema Rating: NEMA 4
- Series: HK Series
- Type: Compact Round Small
- Width: 4-3/4
Killark, HKB-20, Instrument/Device Enclosure, Compact Round Small, Series: HK Series, 4-3/4 in Width, 3-3/16 in Depth, NEMA 4 NEMA Rating, Threaded Cover, 3/4 in NPT Cable Entry, 31 cu-in Capacity, Lug Mounting, Copper-Free Aluminum, Polyester/Epoxy Powder Coated, Gray
- Features
- Compact round body instrument enclosure for use with threaded screw cover to provide easy access to interior
- High strength, lighter weight, corrosion-resistant Cast Copper-Free Aluminum construction
- Cover O-ring, nitrile (BUNA-N) material, supplied standard for a type 4X rating
- Cast mounting lugs are standard on all boxes
- Electrostatically applied gray powder epoxy/polyester finish on exterior of box and cover
- Offset feed-through 3/4 in NPT conduit openings for maximum use of interior volume
- Interior "X" configuration mounting pad for instrument/device cast-into the bottom of the box provided for flexibility
- Enclosures are explosionproof, dust/ignition proof, weather proof and tamper-resistant
- HK series boxes are cast from a copper-free aluminum alloy
- Neoprene O-rings are provided with HK boxes to assure water resistance in NEMA 4/IP66 conditions
